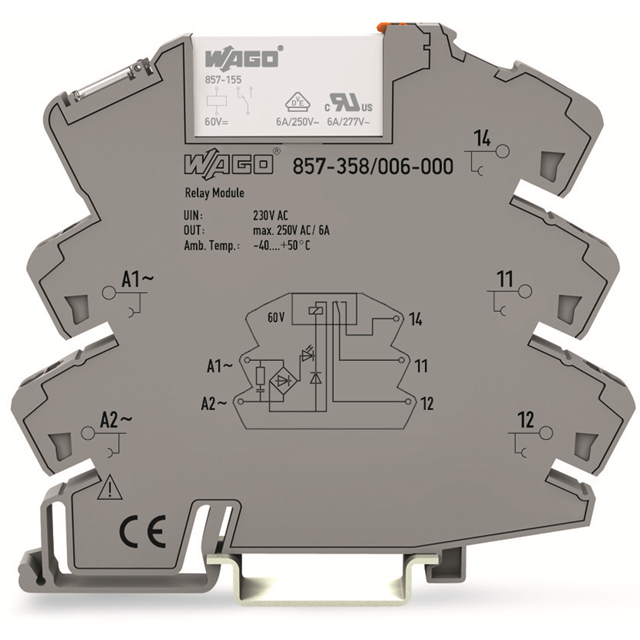

857-358/006-000

Active

WAGO Corporation

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

WAGO Corporation

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 230V

Part	Coil Voltage	Operate Time	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Time	Switching Voltage	Termination Style	Load - Max Switching	Contact Form	Approval Agency	Contact Material	Coil Current	Features	Coil Type	Coil Resistance	Contact Rating (Current)
WAGO Corporation 857-358/006-000	230 VAC	15 ms	General Purpose	-40 °C	60 °C	DIN Rail	25 ms	250 VAC	Spring Terminal	1500 VA	SPDT (1 Form C)	EAC	Silver Tin Oxide (AgSnO)	16 mA	Lighted Indicator	Non Latching	14.38 kOhms	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail

Technical documentation and resources

No documents available
