HEEE-048-F 49-96
ActiveTE Connectivity AMP Connectors
INS FML 48P+1GD HEEE-048-F 49-96
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-048-F 49-96 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEF, DEF |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.98 | |
| 10 | $ 6.32 | |||
| 25 | $ 6.15 | |||
| 50 | $ 5.91 | |||
| 100 | $ 5.88 | |||
T2050962201 Series
INS FML 48P+1GD HEEE-048-F 49-96
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Connector Type | Voltage Rating | Housing Material | Material Flammability Rating | Current Rating (Amps) | Gender | Size | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-048-F 49-96 | 125 °C | -40 °C | Crimp | Insert without Contacts | 400 V | Polycarbonate (PC) | EN45545 | 16 A | Female | H16B | CEF, DEF | 48 |
Description
General part information
T2050962201 Series

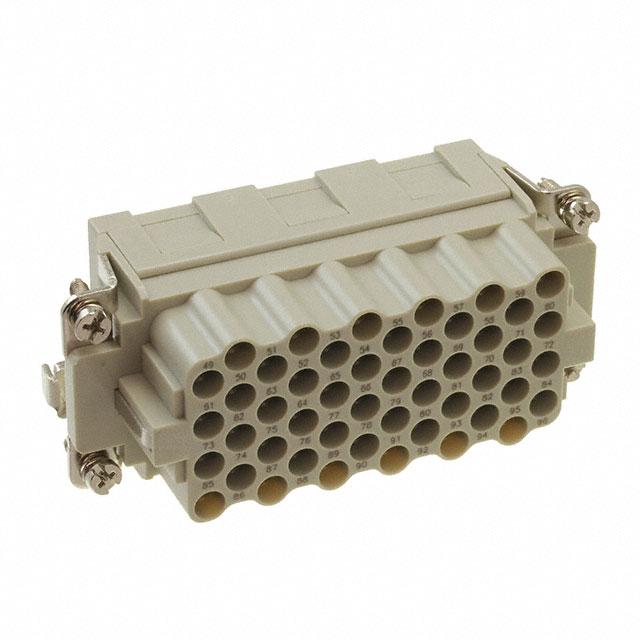

Female Insert without Contacts 48+Ground Position Crimp
