807-032-401-112

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

807-032-401-112

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

807-032 Series

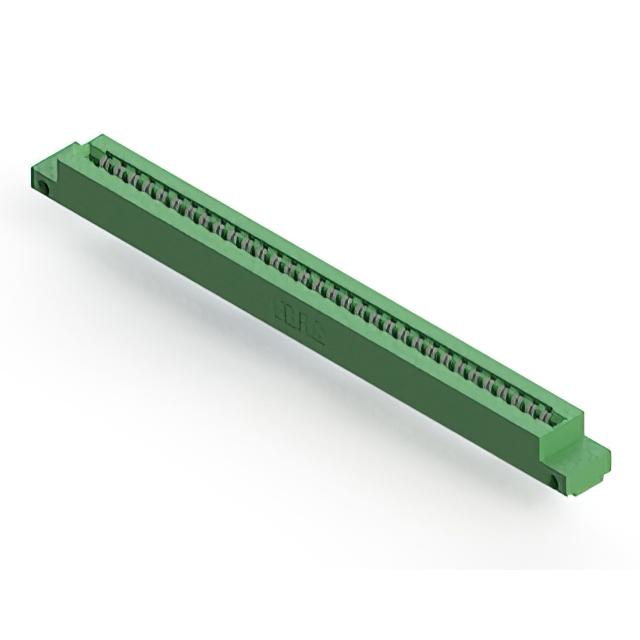

64 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	807-032-401-112

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	64, 32
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

807-032 Series

...

Part	Mounting Type	Number of Positions	Color	Termination	Pitch	Material - Insulation	Contact Finish Thickness	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Contact Material	Flange Feature Diameter	Flange Feature	Contact Type	Number of Rows	Read Out	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Card Type	Gender	Features
EDAC Inc. 807-032-521-103	Through Hole	32 64	Green	Solder	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	1 rows	Copper Alloy	0.116 in	Floating Bobbin Flush Mount	Semi Bellows	2	Dual	125 °C	-40 °C	Gold	Dual Edge Non Specified	Female
EDAC Inc. 807-032-459-101	Right Angle Through Hole	32	Green	Solder	0.156 in	DAP Diallyl Phthalate		0.054 in	0.07 in	1 rows	Copper Alloy			Semi Bellows	1	Single	125 °C	-40 °C	Tin	Non Specified Single Edge	Female
EDAC Inc. 807-032-520-203	Through Hole	16 32	Green	Solder	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	2 rows	Copper Alloy	0.116 in	Floating Bobbin Flush Mount	Semi Bellows	2	Dual	125 °C	-40 °C	Gold	Dual Edge Non Specified	Female
EDAC Inc. 807-032-440-208	Through Hole	16 32	Green	Wire Wrap	0.156 in	DAP Diallyl Phthalate		0.054 in	0.07 in	2 rows	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	2	Dual	125 °C	-40 °C	Tin	Dual Edge Non Specified	Female
EDAC Inc. 807-032-541-102	Through Hole	32 64	Green	Wire Wrap	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	1 rows	Copper Alloy	0.128 in	Flush Mount Top Opening Unthreaded	Semi Bellows	2	Dual	125 °C	-40 °C	Gold	Dual Edge Non Specified	Female
EDAC Inc. 807-032-401-112	Through Hole	32 64	Green	Solder Eyelet(s)	0.156 in	DAP Diallyl Phthalate		0.054 in	0.07 in	1 rows	Copper Alloy	0.128 in	Side Mount Opening Unthreaded	Semi Bellows	2	Dual	125 °C	-40 °C	Tin	Dual Edge Non Specified	Female
EDAC Inc. 807-032-556-207	Board Edge Straddle Mount	16 32	Green	Solder	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	2 rows	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening	Semi Bellows	2	Dual	125 °C	-40 °C	Gold	Dual Edge Non Specified	Female	Card Extender
EDAC Inc. 807-032-540-203	Through Hole	16 32	Green	Wire Wrap	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	2 rows	Copper Alloy	0.116 in	Floating Bobbin Flush Mount	Semi Bellows	2	Dual	125 °C	-40 °C	Gold	Dual Edge Non Specified	Female
EDAC Inc. 807-032-425-102	Through Hole	32	Green	Solder	0.156 in	DAP Diallyl Phthalate		0.054 in	0.07 in	1 rows	Copper Alloy	0.128 in	Flush Mount Top Opening Unthreaded	Semi Bellows	1	Single	125 °C	-40 °C	Tin	Non Specified Single Edge	Female
EDAC Inc. 807-032-545-112	Through Hole	32	Green	Wire Wrap	0.156 in	DAP Diallyl Phthalate	10 Ąin	0.054 in	0.07 in	1 rows	Copper Alloy	0.128 in	Side Mount Opening Unthreaded	Semi Bellows	1	Single	125 °C	-40 °C	Gold	Non Specified Single Edge	Female
