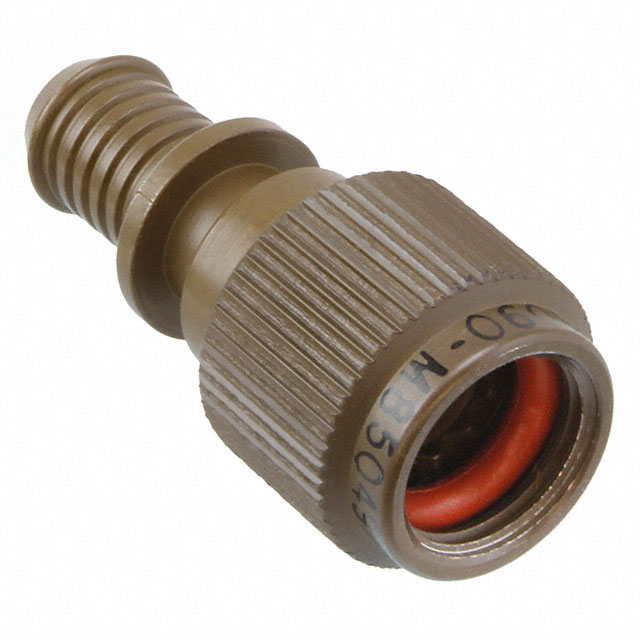

CONN BACKSHELL BANDING SZ9 OLIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R85049/88-9W03

Unknown

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL BANDING SZ9 OLIVE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

R85049 Series

Olive Drab Connector Backshell, Banding 9, A

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R85049/88-9W03	R85049 Series

	-	-
Accessory Type	-	Termination Band, Banding, Split-Ring
Cable Exit	180 °	90 - 180 °
Cable Opening	-	7.9 - 17.48 mm
Cable Opening	-	0.311 - 0.688 in
Cable Opening [custom]	6.35 mm	6.35 - 47.98 mm
Cable Opening [custom]	0.25 in	0.25 - 1.889 in
Color	Olive Drab	Black, Silver, Olive Drab
Diameter - Outside	-	35.71 mm
Diameter - Outside [diameter]	0.858 "	0.75 - 1.889 in
Diameter - Outside [diameter]	21.79 mm	1.406 - 47.98 mm
Features	Self Locking	Self Locking, Flat
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV, M85049/88 Circular Shrink Boot Adapter, Banding Backshells and Braid Socks
Grade	-	Military
Includes	1 O-Ring, 1 Backshell	1 O-Ring, 1 Backshell
Material	Aluminum	Aluminum, Aluminum Alloy
Plating	Cadmium	Zinc Nickel, Electroless Nickel, Cadmium
Qualification	-	SAE AS 85049
Shell Size - Insert	-	D, G, C, J, 17, E, H, F
Shell Size - Insert	-	4 - 25
Shell Size - Insert [custom]	9	9
Shell Size - Insert [custom]	A	A
Shielding	Shielded	Shielded
Thread Size	-	M37x1
Type	Banding, Backshell	Banding, Backshell
