R123680003

Active

Radiall USA, Inc.

QMA / RIGHT ANGLE PCB RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / RIGHT ANGLE PCB RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R123680003

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Insertion Loss	0.25 dB
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Center Contact Plating	Impedance	Dielectric Material	Shield Termination	Number of Ports	Body Material	Voltage Rating	Center Contact Material	Insertion Loss	Frequency - Max [Max]	Housing Color	Contact Termination	Body Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection
Radiall USA, Inc. R123682827W	Female Socket Receptacle	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	1	Brass	350 V	Beryllium Copper	0.25 dB	6000 MHz	Gold	Solder	Gold	Surface Mount Right Angle Through Hole	-40 °C	105 ░C	Snap-On	IP68 - Dust Tight Waterproof
Radiall USA, Inc. R123680003	Female Socket Receptacle	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	1	Brass	500 V	Beryllium Copper	0.25 dB	6000 MHz	Gold	Solder	Gold	Panel Mount Right Angle Through Hole	-40 °C	105 ░C	Snap-On	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

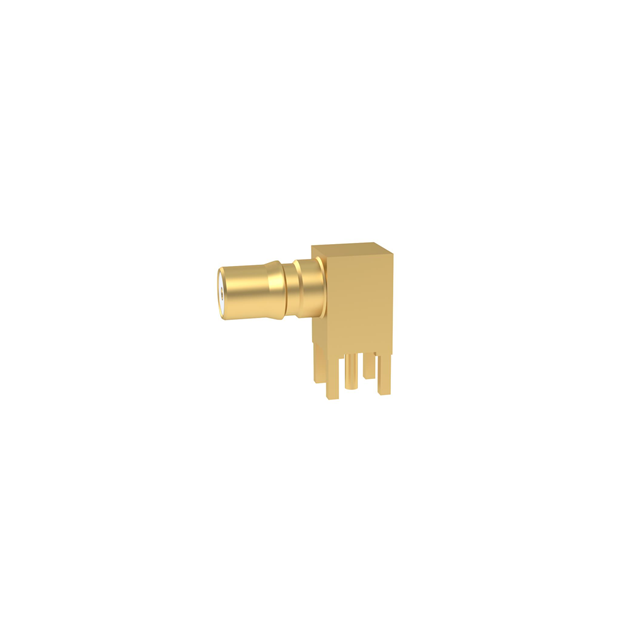

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
