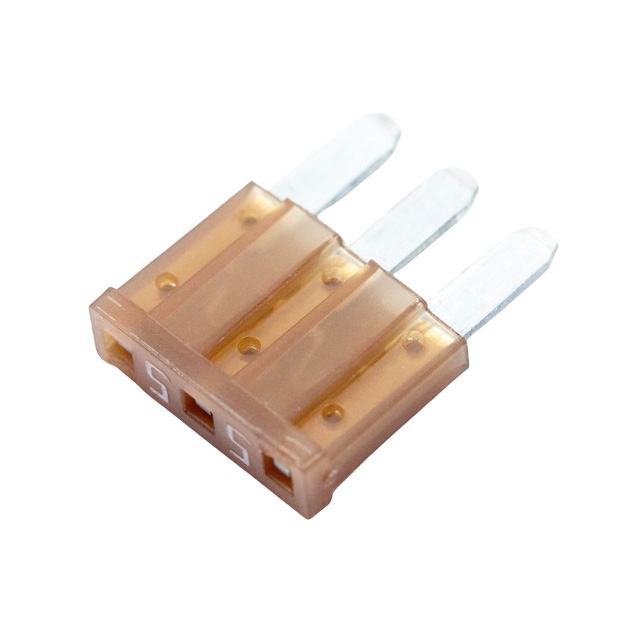

ANK-5A

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANK-5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Tan
Current Rating (Amps)	5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.563 in
Size / Dimension [x]	14.3 mm
Size / Dimension [y]	0.165 "
Size / Dimension [y]	4.2 mm
Size / Dimension [z]	10.6 mm
Size / Dimension [z]	0.417 "
Voltage Rating - DC	32 V

FUSE AUTO 5A 32VDC BLADE MICRO

Part	Approval Agency	Mounting Type	Breaking Capacity @ Rated Voltage	Response Time	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Color	Fuse Type	Package / Case
OptiFuse ANK-5A	ISO, SAE	Requires Holder	1 kA	Fast Blow	5 A	10.6 mm	0.165 "	0.563 in	0.417 "	14.3 mm	4.2 mm	32 V	Tan	Automotive	Blade, Micro

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
