Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1751066 | SPT Series |
|---|---|---|
| Color | Green | Green |
| Current | 20 A | 10 - 20 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch | - | 3.5 - 5 mm |
| Pitch | - | 0.138 - 0.197 in |
| Positions Per Level | 1 | 1 - 12 |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 12 AWG | 12 - 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp |
SPT Series

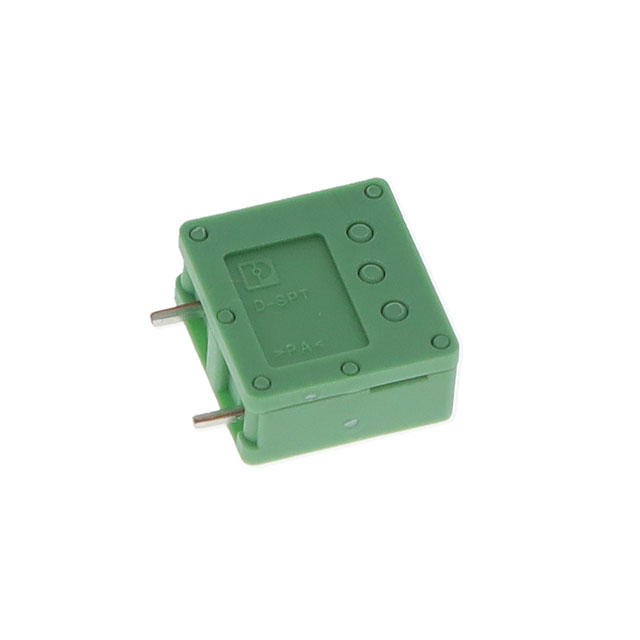

Fixed Terminal Blocks SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR
| Part | Mounting Type | Color | Pitch [x] | Pitch [x] | Positions Per Level | Wire Termination | Current | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Housing Material | Voltage | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1991079 | Through Hole | Green | 5 mm | 0.197 in | 12 | Screwless - Spring Cage, Tension Clamp | 20 A | Horizontal with Board | 12 AWG | 24 AWG | Polyamide (PA), Nylon | 300 V | 1 |
Phoenix Contact 1990766 | Through Hole | Green | 3.5 mm | 0.138 in | 5 | Screwless - Spring Cage, Tension Clamp | 10 A | Horizontal with Board | 16 AWG | 24 AWG | Polyamide (PA), Nylon | 300 V | 1 |
Phoenix Contact 1751066 | Through Hole | Green | 1 | Screwless - Spring Cage, Tension Clamp | 20 A | Horizontal with Board | 12 AWG | 24 AWG | Polyamide (PA), Nylon | 300 V | 1 | ||
Phoenix Contact 1991024 | Through Hole | Green | 5 mm | 0.197 in | 7 | Screwless - Spring Cage, Tension Clamp | 20 A | Horizontal with Board | 12 AWG | 24 AWG | Polyamide (PA), Nylon | 300 V | 1 |
