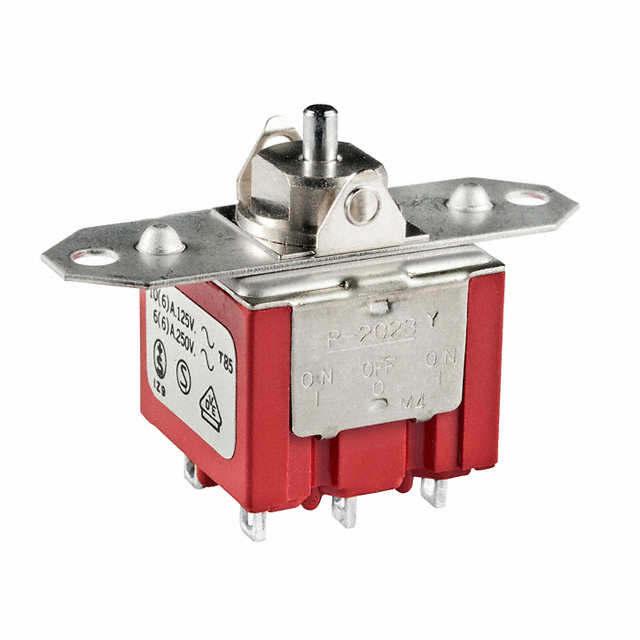

P2023Y

Obsolete

NKK Switches

SWITCH ROCKER DPDT 10A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Actuator Type	Mounting Type	Termination Style	Electrical Life	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches P2023YZ	DPDT	On-Off-On	125 V	10 A	-10 °C	85 °C	CSA UL VDE	Actuator Arm Cap Required	Flange Panel Mount	Quick Connect - 0.187" (4.7mm)	25000 Steps	Varies by Cap	28.5 mm	16 mm
NKK Switches P2023YP	DPDT	On-Off-On	125 V	10 A	-10 °C	85 °C	CSA UL VDE	Actuator Arm Cap Required	Flange Panel Mount	PC Pin	25000 Steps	Varies by Cap	28.5 mm	16 mm
NKK Switches P2023Y	DPDT	On-Off-On	125 V	10 A	-10 °C	85 °C	CSA UL VDE	Actuator Arm Cap Required	Flange Panel Mount	Solder Lug	25000 Steps	Varies by Cap	28.5 mm	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Flange
