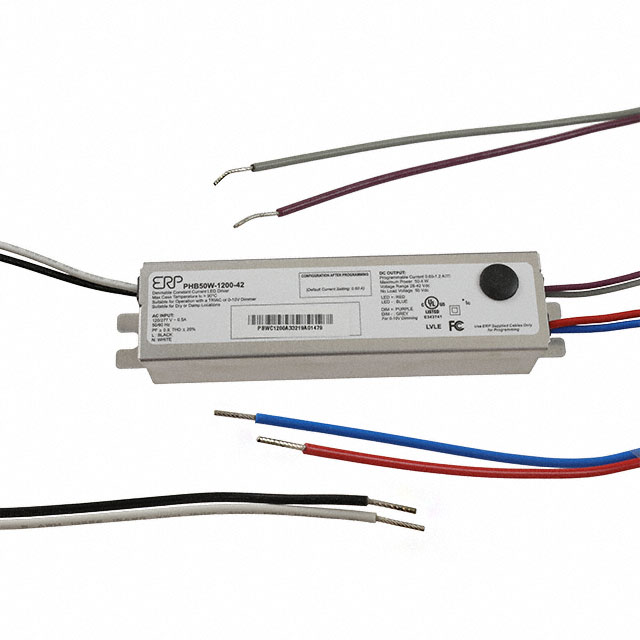

PHB50W-1200-42

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Search across all available documentation for this part.

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.2A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PROGRAMMABLE CC LED DRIVER

Part	Mounting Type	Efficiency	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Ratings	Type	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Termination Style	Topology	Operating Temperature
ERP Power, LLC PHB50W-0850-56	Chassis Mount	90 %	cULus, FCC	38 V	56 V	Analog, ELV, TRIAC	IP20	Constant Current	48 W	120 VAC	277 VAC	1	103.4 mm	1.03 in	23.9 mm	26.2 mm	0.94 in	4.07 in	850 mA	Wire Leads	AC DC Converter	194 °F
ERP Power, LLC PHB50W-1200-42	Chassis Mount	90 %	cULus, FCC	28 V	42 V	Analog, ELV, TRIAC	IP20	Constant Current	50 W	120 VAC	277 VAC	1	103.4 mm	1.03 in	23.9 mm	26.2 mm	0.94 in	4.07 in	1.2 A	Wire Leads	AC DC Converter	194 °F
