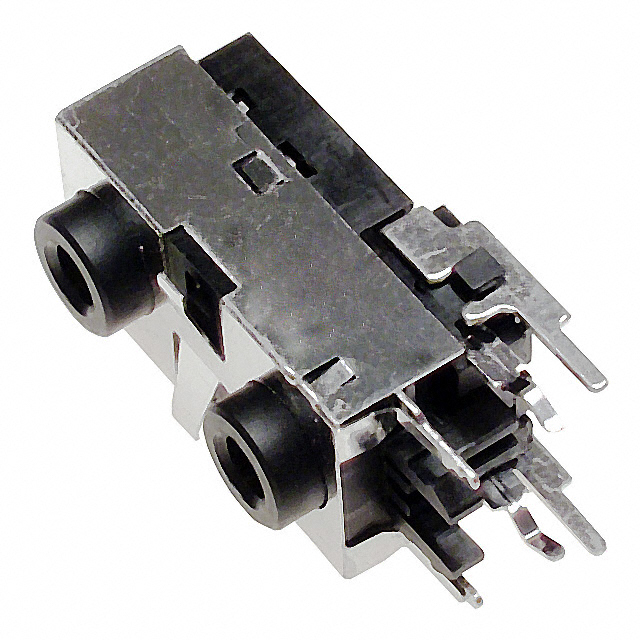

SJD-3511-33
ObsoleteCUI Devices
CONN JACK DUAL STEREO 3.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJD-3511-33
ObsoleteCUI Devices
CONN JACK DUAL STEREO 3.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJD-3511-33 |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack, Dual |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 300 mA |
| Gender | Female |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 16 V |
SJD-35 Series
| Part | Current Rating (Amps) | Mounting Type | Internal Switch(s) | Contact Material | Voltage - Rated | Termination | Contact Material - Plating | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Signal Lines | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Body Color | Gender | Internal Switch(s) | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | 300 mA | Through Hole Right Angle | Copper Alloy | 16 V | Solder | Tin | 0.141 " | 0.125 " | 3.5 mm | Shielded | -25 °C | 85 °C | Stereo | Dual Phone Jack | 0.142 in | 3.6 mm | Black | Female | |||
CUI Devices | Through Hole Right Angle | Copper Alloy | Solder | Tin | 0.141 " | 0.125 " | 3.5 mm | Shielded | -25 °C | 85 °C | Stereo | Dual Phone Jack | 0.142 in | 3.6 mm | Black | Female | Single Switch Two Switches | 2 Sets of 3 Conductors 9 Contacts | |||
CUI Devices | 300 mA | Through Hole Right Angle | Brass | 16 V | Solder | Tin | 0.141 " | 0.125 " | 3.5 mm | Shielded | Stereo | Dual Phone Jack | 0.142 in | 3.6 mm | Black | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SJD-35 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder
