829394-8
ActiveTE Connectivity AMP Connectors

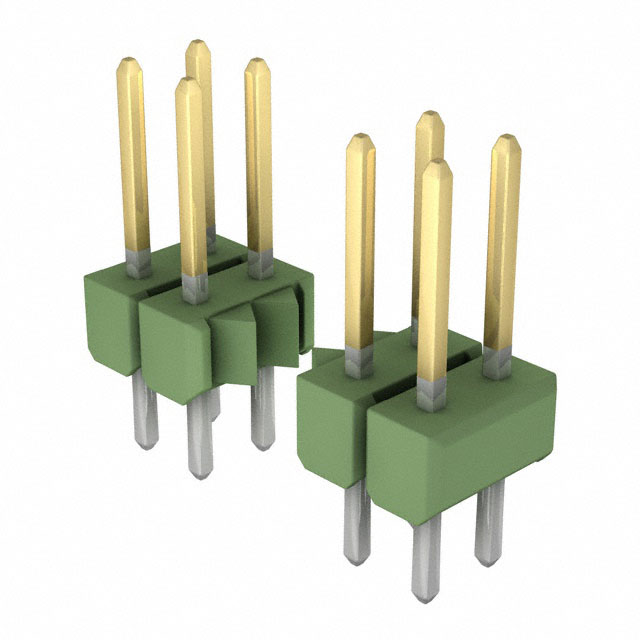

CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
829394-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 829394-8 | 829394 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Mating | 6.8 mm | 6.8 mm |
| Contact Length - Mating | 0.268 in | 0.268 in |
| Contact Length - Post | 3.35 mm | 3.35 mm |
| Contact Length - Post | 0.132 in | 0.132 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Height | 0.1 in | 0.1 in |
| Insulation Height | 2.54 mm | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 4 - 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 12.7 mm | 12.7 mm |
| Overall Contact Length | 0.5 " | 0.5 " |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
829394 Series
CONN HEADER VERT 4POS 2.54MM
| Part | Connector Type | Number of Positions | Termination | Mounting Type | Number of Positions Loaded | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Finish - Post | Shrouding | Contact Finish - Mating | Style | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Overall Contact Length | Overall Contact Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 829394-2 | Breakaway, Header | 4 | Solder | Through Hole | All | 2 | 6.8 mm | 0.268 in | 3.35 mm | 0.132 in | 5 A | Phosphor Bronze | 0.1 in | 2.54 mm | Green | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Tin | Unshrouded | Gold | Board to Board, Cable | 2.54 mm | 0.1 in | Male Pin | -65 ░C | 105 ░C | Polybutylene Terephthalate (PBT), Glass Filled | Square | 0.099 µm | 3.9 µin | Push-Pull | 12.7 mm | 0.5 " | |
TE Connectivity AMP Connectors 829394-8 | Breakaway, Header | Solder | Through Hole | All | 2 | 6.8 mm | 0.268 in | 3.35 mm | 0.132 in | 5 A | Phosphor Bronze | 0.1 in | 2.54 mm | Green | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Tin | Unshrouded | Gold | Board to Board, Cable | 2.54 mm | 0.1 in | Male Pin | -65 ░C | 105 ░C | Polybutylene Terephthalate (PBT), Glass Filled | Square | 0.099 µm | 3.9 µin | Push-Pull | 12.7 mm | 0.5 " | 16 | |
TE Connectivity AMP Connectors 829394-7 | Breakaway, Header | 14 | Solder | Through Hole | All | 2 | 6.8 mm | 0.268 in | 3.35 mm | 0.132 in | 5 A | Phosphor Bronze | 0.1 in | 2.54 mm | Green | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Tin | Unshrouded | Gold | Board to Board, Cable | 2.54 mm | 0.1 in | Male Pin | -65 ░C | 105 ░C | Polybutylene Terephthalate (PBT), Glass Filled | Square | 0.099 µm | 3.9 µin | Push-Pull | 12.7 mm | 0.5 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
829394 Series
Connector Header Through Hole 16 position 0.100" (2.54mm)
