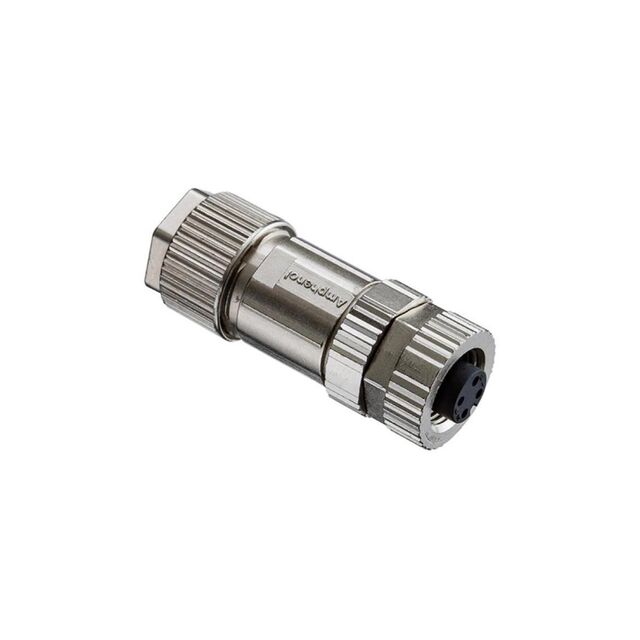

MSAS-08BFFB-SL7001
ActiveAmphenol LTW
M12 CONN SCREW IN 180
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSAS-08BFFB-SL7001
ActiveAmphenol LTW
M12 CONN SCREW IN 180
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-08BFFB-SL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.295 in |
| Cable Opening [Max] [custom] | 7.5 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.68 | |
| 10 | $ 17.23 | |||
| 30 | $ 16.49 | |||
| 50 | $ 15.96 | |||
| 100 | $ 15.43 | |||
| 250 | $ 14.57 | |||
| 500 | $ 14.15 | |||
Description
General part information
MSAS-08BFFB Series
8 Position Circular Connector Plug, Female Sockets Screw
