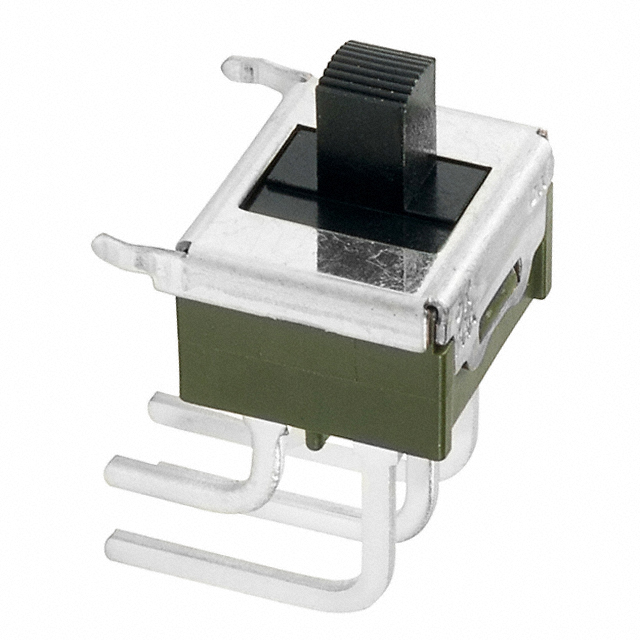

Specification	MS22ASW30

Actuator Length	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting (BBM)
Current Rating	6 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Switch Travel	2.2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

MS22ASW Series

Part	Mounting Type	Switch Function	Actuator Length	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Circuit	Features	Contact Timing	Termination Style	Contact Material	Current Rating	Contact Finish	Electrical Life (Cycles)	Switch Travel	Mechanical Life (Cycles)	Actuator Material
NKK Switches MS22ASW13	Through Hole	On-On	5.1 mm	125 V	85 °C	-30 °C	Standard	DPDT	Epoxy Sealed Terminals	Non-Shorting (BBM)	PC Pin	Silver Alloy	6 A	Silver	25000	2.2 mm	100000 Cycles	Glass Filled Polybutylene Terephthalate (PBT)
NKK Switches MS22ASW30	Right Angle Through Hole	On-On	5.1 mm	125 V	85 °C	-30 °C	Standard	DPDT	Epoxy Sealed Terminals	Non-Shorting (BBM)	PC Pin	Silver Alloy	6 A	Silver	25000	2.2 mm	100000 Cycles	Glass Filled Polybutylene Terephthalate (PBT)
