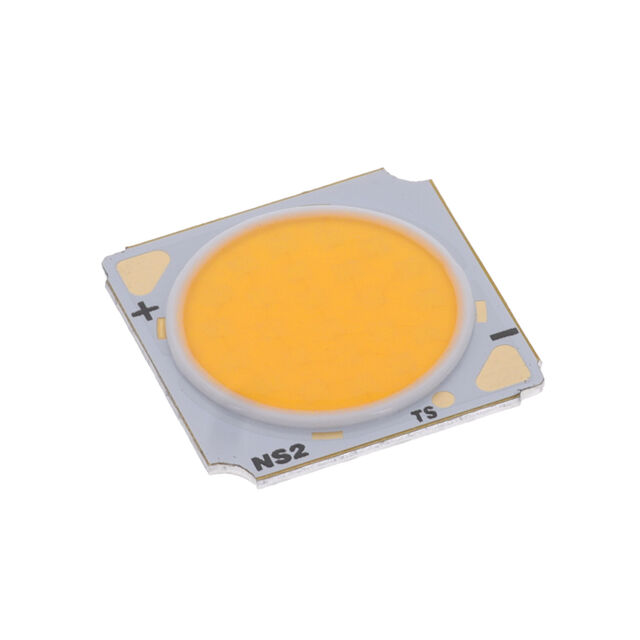

S4SM-1564409736-0B500H3S-00001

Active

Seoul Semiconductor

LED CHIP NEUTRAL WHITE 4000K 0.86A 2-PIN SURFACE MOUNT T/R

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED CHIP NEUTRAL WHITE 4000K 0.86A 2-PIN SURFACE MOUNT T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S4SM-1564409736-0B500H3S-00001	S4SM Series

CCT (K)	4000 K	2700 - 4000 K
Color	Neutral, White	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	97	97
Current - Max [Max]	860 mA	1.44 - 860 mA
Current - Test	430 mA	170 - 720 mA
Height [z]	1.45 mm	1.45 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm	6 - 14.5 mm
Lumens/Watt @ Current - Test	103 lm/W	89 - 108 lm/W
Luminous Flux @ Current/Temperature	1550 lm	585 - 2275 lm
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	19 mm	19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	35 V	34.8 - 36.1 V

LED COB SUNLIKE WM WHT SQ 2700K

Part	Color	Height [z]	Configuration	Lens Type	CCT (K)	Current - Max [Max]	Viewing Angle	Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Type	Temperature - Test	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]
Seoul Semiconductor S4SM-1063279736-0B000G3S-00001	Warm, White	1.45 mm	Square	Flat	2700 K	580 mA	115 °	290 mA	97	9.8 mm	34.8 V	89 lm/W	Chip On Board (COB)	85 °C
Seoul Semiconductor S4SM-1564409736-0B500H3S-00001	Neutral, White	1.45 mm	Square	Flat	4000 K	860 mA	115 °	430 mA	97	14.5 mm	35 V	103 lm/W	Chip On Board (COB)	85 °C	1550 lm	19 mm	19 mm
Seoul Semiconductor S4SM-0661509736-0A600H3S-00001	Cool, White	1.45 mm	Square	Flat		260 mA	115 °	170 mA	97	6 mm Dia	36.1 V	95 lm/W	Chip On Board (COB)	85 °C	585 lm
Seoul Semiconductor S4SM-1566279736-0C500H3S-00001	Warm, White	1.45 mm	Square	Flat	2700 K	1.44 A	115 °	720 mA	97	14.5 mm	35.2 V	90 lm/W	Chip On Board (COB)	85 °C	2275 lm	19 mm	19 mm
Seoul Semiconductor S4SM-1564509736-0B500H3S-00001	Cool, White	1.45 mm	Square	Flat		860 mA	115 °	430 mA	97	14.5 mm	35 V	108 lm/W	Chip On Board (COB)	85 °C	1620 lm	19 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SunLike White, Neutral Square
