SMP-MSLD-PCS-2

Active

AMPHENOL RF

CONN SMP JACK STR 50OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

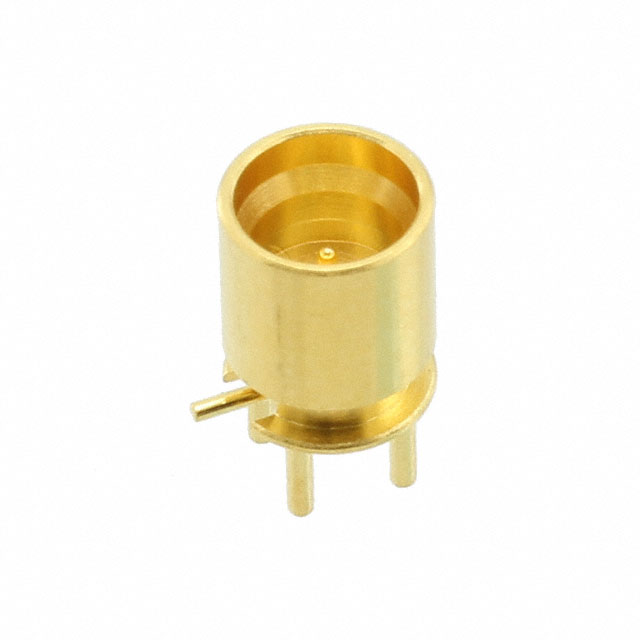

SMP-MSLD-PCS-2

Active

AMPHENOL RF

CONN SMP JACK STR 50OHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.08
		10	$ 17.01
		25	$ 15.39
		50	$ 14.30
		100	$ 13.31
		250	$ 12.15
		500	$ 11.36

Description

General part information

SMP-MSLD Series

SMP Connector Jack, Male Pin 50 Ohms Surface Mount Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-MSLD-PCS-2	SMP-MSLD Series

Body Finish	Gold	Gold
Body Material	Stainless Steel	Brass, Phosphor Bronze, Stainless Steel, Beryllium Copper
Center Contact Material	Phosphor Bronze	Brass, Beryllium Copper, Phosphor Bronze, Gold
Center Contact Plating	Gold	Gold
Connector Type	Male Pin, Jack	Male Pin, Receptacle, Jack
Contact Finish	-	Gold
Contact Material	-	Beryllium Copper
Contact Termination	Solder	Solder
Dielectric Material	Polyamide-Imide (PAI)	Polyetheretherketone (PEEK), Liquid Crystal Polymer (LCP), Polytetrafluoroethylene (PTFE), Polyamide-Imide (PAI)
Fastening Type	Snap-On	Snap-On
Features	Limited Detent	Catcher's Mitt, Limited Detent, Pick and Place Cap, Solder Retention
Frequency - Max [Max]	18 GHz	12 - 6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.1 dB	0.1 dB
Mating Cycles	500	500
Mounting Type	Surface Mount	Through Hole, Surface Mount, Cutout, Board Edge, Free Hanging, Cap
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Solder	Solder

SMP-MSLD Series

RF / COAXIAL CONNECTOR, SMP COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, BRASS

Part	Housing Color	Body Finish	Contact Termination	Mounting Type	Features	Mating Cycles	Impedance	Shield Termination	Body Material	Center Contact Plating	Connector Type	Dielectric Material	Frequency - Max [Max]	Fastening Type	Center Contact Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material
AMPHENOL RF SMP-MSLD-PCT	Gold	Gold	Solder	Through Hole	Catcher's Mitt	500	50 Ohms	Solder	Brass	Gold	Male Pin, Receptacle	Polyetheretherketone (PEEK)	6000 MHz	Snap-On	Brass	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT-3	Gold	Gold	Solder	Through Hole	Limited Detent	500	50 Ohms	Solder	Phosphor Bronze	Gold	Jack, Male Pin	Polyetheretherketone (PEEK)	26.5 GHz	Snap-On	Beryllium Copper	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT19T	Gold	Gold	Solder	Through Hole	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)	20 GHz	Snap-On	Brass	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT-4	Gold	Gold	Solder	Surface Mount, Through Hole	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)	26.5 GHz	Snap-On	Brass	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT-5	Gold	Gold	Solder	Through Hole	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Male Pin, Receptacle		6000 MHz	Snap-On	Brass	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT-10	Gold	Gold	Solder	Surface Mount, Through Hole	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Male Pin, Receptacle	Polyetheretherketone (PEEK)	26.5 GHz	Snap-On	Beryllium Copper	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCR	Gold	Gold	Solder	Surface Mount	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Jack, Male Pin		12 GHz	Snap-On	Beryllium Copper	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCT-19	Gold	Gold	Solder	Through Hole	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)	20 GHz	Snap-On	Brass	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-PCE-5T	Gold	Gold	Solder	Board Edge, Cutout, Surface Mount	Limited Detent	500	50 Ohms	Solder	Brass	Gold	Jack, Male Pin	Polytetrafluoroethylene (PTFE)	26.5 GHz	Snap-On	Beryllium Copper	1	-65 ░C	165 °C
AMPHENOL RF SMP-MSLD-T2		Gold		Cap, Free Hanging	Limited Detent		50 Ohms		Brass		Jack, Male Pin	Polytetrafluoroethylene (PTFE)	26.5 GHz						Gold	Beryllium Copper
