PCAP04 LITE V1.0

Active

ScioSense

PCAP04 LITE V1.0 BGRP

Search across all available documentation for this part.

Active

ScioSense

PCAP04 LITE V1.0 BGRP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCAP04 LITE V1.0	PCAP04 Series

Contents	Board(s)	Power Supply, Cable(s), Accessories, Board(s)
Data Interface	-	I2C, SPI
Function	Capacitance-to-Digital Converter	Capacitance-to-Digital Converter
Mounting Type	-	Surface Mount
Number of Channels	-	6
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Package / Case	-	Die
Resolution (Bits)	-	17 b
Secondary Attributes	-	Graphical User Interface (GUI)
Supplied Contents	Board(s)	Power Supply, Cable(s), Board(s), Accessories
Supplier Device Package	-	Die
Type	Interface	Capacitance-to-Digital Converter, Interface
Utilized IC / Part	PCap04	PCap04
Voltage - Supply	-	2.1 V
Voltage - Supply	-	3.6 V
Voltage Supply Source	-	Single Supply

IC CAP TO DGTL CONVRTR 17BIT DIE

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Voltage Supply Source	Resolution (Bits)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Data Interface	Mounting Type	Number of Channels [custom]	Supplier Device Package	Function	Supplied Contents	Utilized IC / Part	Contents	Secondary Attributes
ScioSense PCAP04-ASWB	2.1 V	3.6 V	Die	Single Supply	17 b	125 °C	-40 °C	Capacitance-to-Digital Converter	I2C, SPI	Surface Mount	6	Die
ScioSense PCAP04-EVA-KIT V2.0								Interface					Capacitance-to-Digital Converter	Accessories, Board(s), Cable(s), Power Supply	PCap04	Accessories, Board(s), Cable(s), Power Supply	Graphical User Interface (GUI)
ScioSense PCAP04 LITE V1.0								Interface					Capacitance-to-Digital Converter	Board(s)	PCap04	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.00

General part information

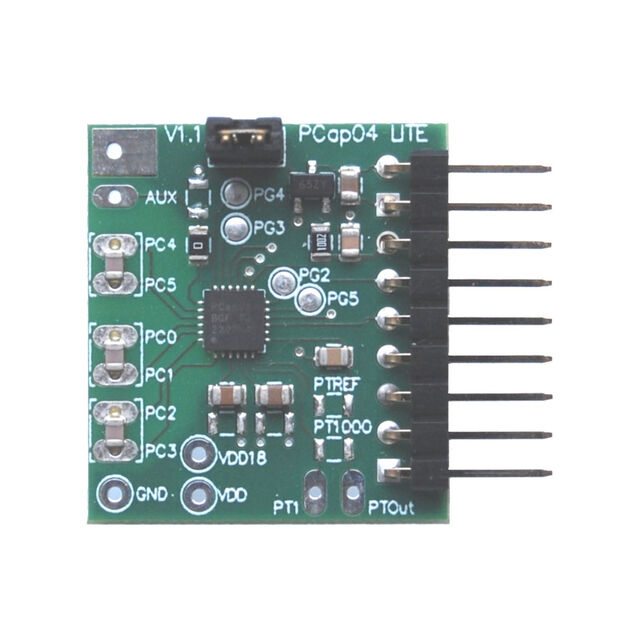

PCap04 - Capacitance-to-Digital Converter Interface Evaluation Board
