1057853-1
ActiveTE Connectivity AMP Connectors

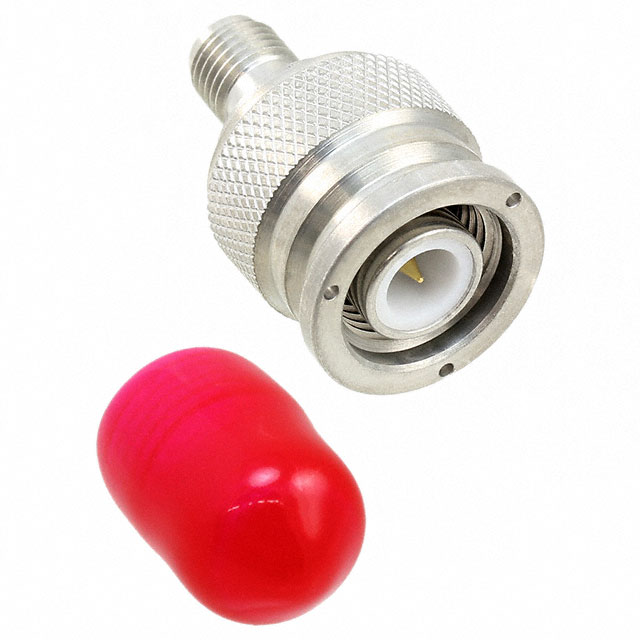

CONN ADAPT TNC PLUG TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1057853-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT TNC PLUG TO SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057853-1 |
|---|---|
| Adapter Series | OSM to OST |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1057853 Series
CONN ADAPT TNC PLUG TO SMA JACK
| Part | Center Contact Material | Frequency - Max [Max] | Convert To (Adapter End) | Style | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Center Contact Plating | Dielectric Material | Body Material | Adapter Series | Mounting Type | Conversion Type | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057853-1 | Beryllium Copper | 11 GHz | Female Socket, SMA Jack | Straight | -65 ░C | 165 °C | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | OSM to OST | Free Hanging (In-Line) | Between Series | Plug to Jack |
Description
General part information
1057853 Series
Adapter Coaxial Connector TNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
