NJM2772V-TE1#

Active

Nisshinbo Micro Devices Inc

IC AMP CLASS AB STER 8MW 14SSOP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC AMP CLASS AB STER 8MW 14SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	NJM2772V-TE1#

Features	Standby, Mute
Max Output Power x Channels @ Load	8 mW
Max Output Power x Channels @ Load [x]	16 Ohm, 2
Mounting Type	Surface Mount
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 °C
Output Type	Headphones, 2-Channel (Stereo)
Package / Case	0.173 ", 4.4 mm

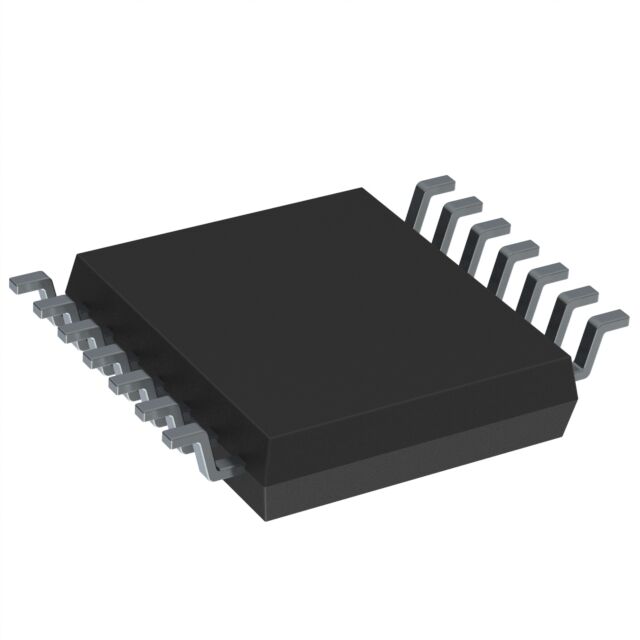

Package / Case	14-LSSOP
Supplier Device Package	14-SSOP
Type	Class AB
Voltage - Supply [Max]	4.5 V
Voltage - Supply [Min]	1.8 V

Part	Output Type	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Mounting Type	Features	Supplier Device Package	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type
Nisshinbo Micro Devices Inc NJM2772V-TE1#	Headphones 2-Channel (Stereo)	2 16 Ohm	8 mW	Surface Mount	Mute Standby	14-SSOP	0.173 " 4.4 mm	14-LSSOP	75 °C	-20 °C	4.5 V	1.8 V	Class AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amplifier IC Headphones, 2-Channel (Stereo) Class AB 14-SSOP
