1565 BR001

Active

ALPHA WIRE

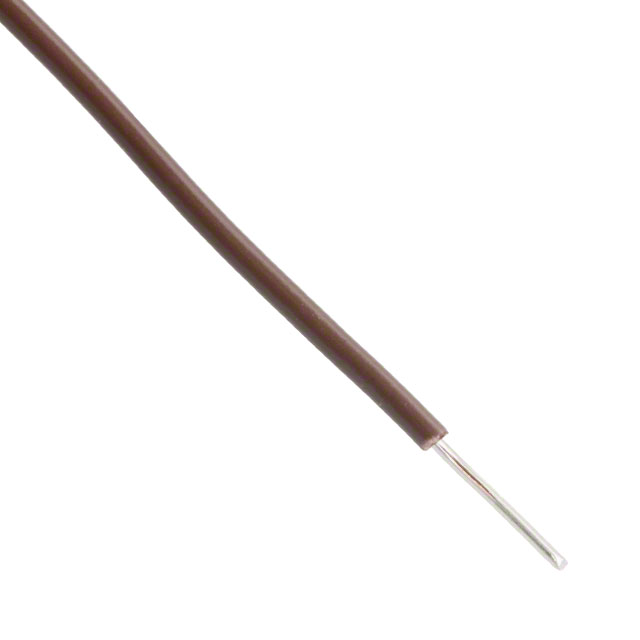

HOOK-UP SOLID 18AWG BROWN 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1565 BR001

Active

ALPHA WIRE

HOOK-UP SOLID 18AWG BROWN 1000'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 482.73

Description

General part information

1565 Series

18 AWG Hook-Up Wire Solid Brown 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1565 BR001	1565 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	Solid	Solid
Jacket (Insulation) Diameter [diameter]	0.072 in	0.072 in
Jacket (Insulation) Diameter [diameter]	1.83 mm	1.83 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	Brown	Green, Red, Yellow, Blue, Brown, Black, Slate, Orange
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	18 AWG	18 AWG

1565 Series

HOOK-UP SOLID 18AWG GRN 100'

Part	Jacket (Insulation) Material	Length [x]	Length [x]	Voltage	Qualification	Conductor Strand	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 1565 GR005	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	1000 V	MIL-W-76B Type MW	Solid	Green	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm
ALPHA WIRE 1565 RD001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid	Red	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 YL001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid	Yellow	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 BL001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid	Blue	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 BR005	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	1000 V	MIL-W-76B Type MW	Solid	Brown	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm
ALPHA WIRE 1565 BL005	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	1000 V	MIL-W-76B Type MW	Solid	Blue	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm
ALPHA WIRE 1565 WH001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid		Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 BK001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid	Black	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 SL001	Poly-Vinyl Chloride (PVC)			1000 V	MIL-W-76B Type MW	Solid	Slate	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm	1000 ft	304.8 m
ALPHA WIRE 1565 OR005	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	1000 V	MIL-W-76B Type MW	Solid	Orange	Hook-Up	-40 °C	80 C	Copper, Tinned	18 AWG	0.072 in	1.83 mm	0.016 in	0.41 mm
