TE Connectivity Raychem Cable Protection

CONN WIRE PIN TERM 10-12AWG PG

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN WIRE PIN TERM 10-12AWG PG

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Pin Diameter	Pin Diameter	Termination	Contact Material	Color	Material - Insulation	Length - Pin [x]	Length - Pin [x]	Length - Termination [x]	Length - Termination [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Features	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Levels	Contact Tail Length	Contact Tail Length	Termination Style	Positions Per Level	Number of Positions	Header Orientation	Contact Mating Finish	Voltage - UL	Type	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Current - UL	Wire Gauge [Max]	Wire Gauge [Min]	Pin Diameter [y]	Pin Diameter [y]	Pin Diameter [x]	Pin Diameter [x]	Length - Termination	Length - Termination
TE Connectivity Raychem Cable Protection 131444	Insulated	0.031 " 0.116 "	0.8 mm 2.95 mm	Crimp	Copper	Blue	Poly-Vinyl Chloride (PVC)	10.31 mm	0.406 in	12.7 mm	0.5 in	0.906 in	23.01 mm	Tin	Serrated Termination	4.9 mm	3 mm	0.193 in	0.118 in
TE Connectivity Raychem Cable Protection 1314341					Phosphor Bronze	Green														-40 °C	105 ░C	3.5 mm	0.138 in	1	3.4 mm	0.134 in	Solder	2	2	90° Right Angle	Tin	300 V	Header Male Pins Shrouded (4 Side)	UL94 V-0	7.3 mm	0.287 in	Through Hole	11 A
TE Connectivity Raychem Cable Protection 131445	Insulated			Crimp	Copper	Yellow	Poly-Vinyl Chloride (PVC)	11.81 mm	0.465 in			1.157 in	29.39 mm	Tin	Serrated Termination	6.4 mm	3.81 mm	0.252 "	0.15 "																				12 AWG	10 AWG	0.031 in	0.8 mm	0.165 "	4.2 mm	17.6 mm	0.693 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

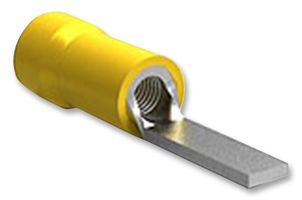

Wire Pin Terminal Connector 10-12 AWG Plasti-Grip Crimp
