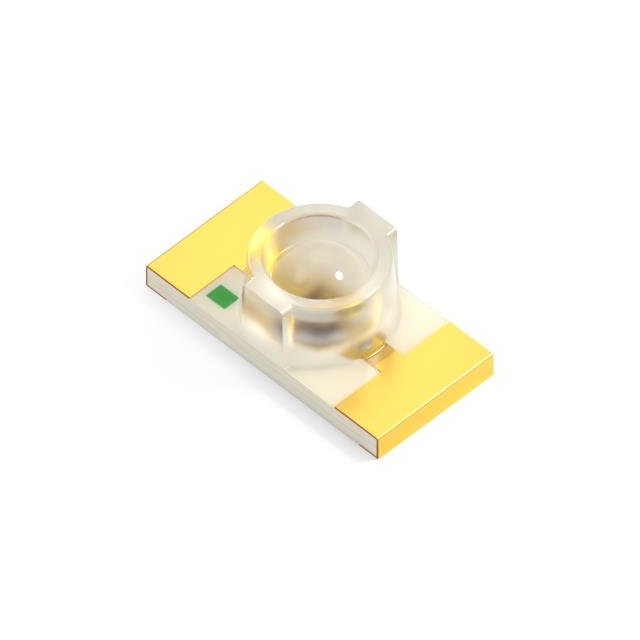

XZVG55W-A2RT
ActiveSunLED
LED GREEN CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZVG55W-A2RT
ActiveSunLED
LED GREEN CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVG55W-A2RT |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.1 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 98 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2000 | $ 0.09 | ||
| 4000 | $ 0.09 | |||
| 6000 | $ 0.08 | |||
| 10000 | $ 0.08 | |||
| 14000 | $ 0.08 | |||
| 20000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
XZVG55 Series
Green 570nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
