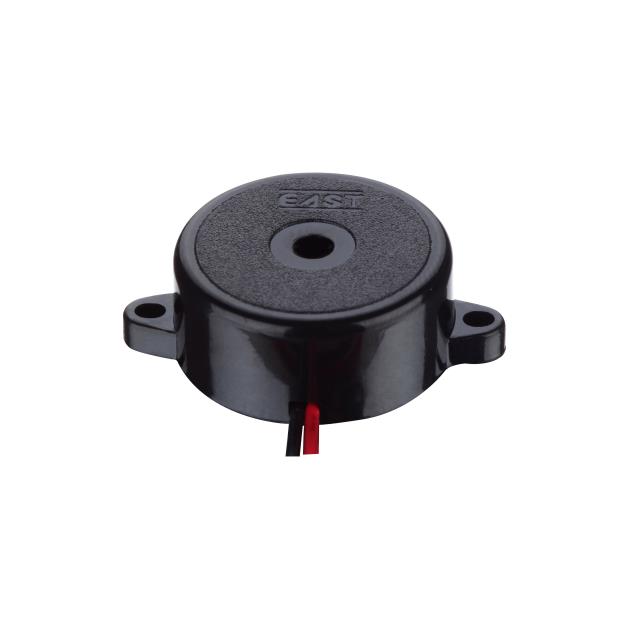

EFM-260BL

Active

East Electronics

BUZZER 12V 32MM WIRE

Search across all available documentation for this part.

Active

East Electronics

BUZZER 12V 32MM WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

BUZZER 12V 32MM WIRE

Part	Voltage - Rated	Frequency	Voltage Range [Min]	Voltage Range [Max]	Sound Pressure Level (SPL)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Size / Dimension	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
East Electronics EFM-260BL	12 VDC	3.5 kHz	3 V	24 V	85 dB	9.8 mm	0.386 in	10 mA	32 mm	1.26 "	Continuous	Wire Lead	-20 C	70 °C	Wire Leads
East Electronics EFM-260R	12 VDC	3 kHz	3 V	24 V	85 dB			15 mA		1.024 in	Continuous	Through Hole	-20 C	70 °C	PC Pins	26 mm	0.421 in	10.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers 12 V 10mA 3.5kHz 85dB @ 12V, 30cm Wire Lead Wire Leads
