PRINTED CIRCUIT PIN GOLD/NICKEL

Technical Specifications

Parameters and characteristics for this part

Specification	6218-0-00-34-00-00-03-0

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Brass Alloy
Insulation	Non-Insulated
Length - Above Flange [x]	0.142 in
Length - Above Flange [x]	3.61 mm
Length - Below Flange [x]	4.62 mm
Length - Below Flange [x]	0.182 in
Length - Overall [x]	0.399 in
Length - Overall [x]	10.13 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.019 in
Pin Size - Above Flange [diameter]	0.48 mm
Pin Size - Below Flange [diameter]	0.51 mm
Pin Size - Below Flange [diameter]	0.02 in
Terminal Style	Double End
Terminal Type	PC Pin
Termination	Press-Fit

Part	Terminal Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Pin Size - Below Flange	Pin Size - Below Flange	Terminal Style	Contact Finish	Termination	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Length - Above Flange	Length - Above Flange	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]
Mill-Max Manufacturing Corp. 6218-0-00-80-00-00-03-0	PC Pin	200 Áin	5.08 Ám	10.64 mm	0.419 "	0.067 in	1.7 mm	Double End	Tin	Press-Fit	1.02 mm	0.04 in	0.1 in	2.54 mm	Brass Alloy	Through Hole	1.73 mm	0.068 in	2.36 mm	0.093 in	Non-Insulated	4.78 mm	0.188 "
Mill-Max Manufacturing Corp. 6218-0-00-21-00-00-03-0	PC Pin	20 µin	0.51 µm	10.13 mm	0.399 in			Double End	Gold	Press-Fit	0.48 mm	0.019 in	0.182 in	4.62 mm	Brass Alloy	Through Hole	1.45 mm	0.057 "			Non-Insulated			0.51 mm	0.02 in	0.142 in	3.61 mm
Mill-Max Manufacturing Corp. 6218-0-00-34-00-00-03-0	PC Pin	50 µin	1.27 µm	10.13 mm	0.399 in			Double End	Gold	Press-Fit	0.48 mm	0.019 in	0.182 in	4.62 mm	Brass Alloy	Through Hole	1.45 mm	0.057 "			Non-Insulated			0.51 mm	0.02 in	0.142 in	3.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

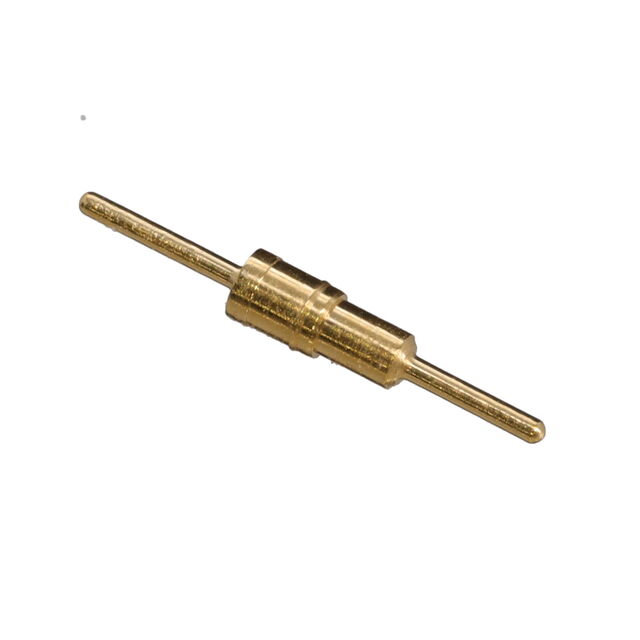

PC Pin Terminal Connector Through Hole Gold 0.019" (0.48mm) Dia
