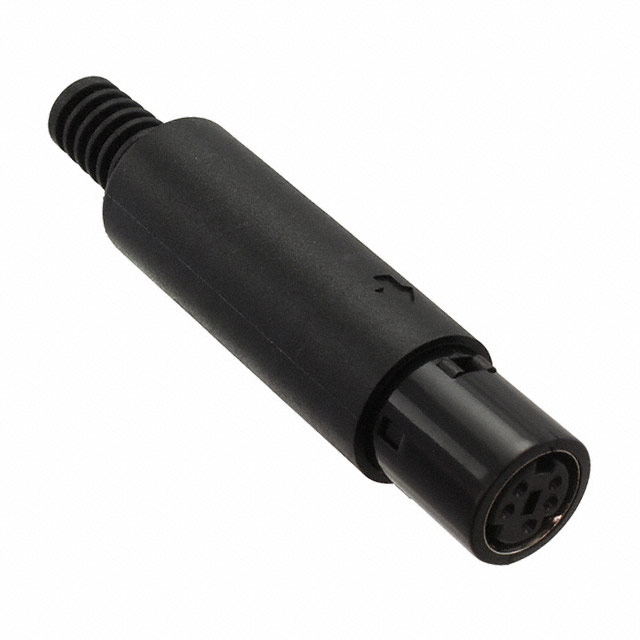

MD-50J

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 5P SLDR

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 5P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MD-50J

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Brass
Fastening Type	Push-Pull
Features	Strain Relief, Ground
Insert Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Nickel
Shell Material	Copper
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Solder, Crimp Pin Adapter Available
Voltage Rating	100 VAC, 12 V

Part	Insert Material	Fastening Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Orientation	Color	Connector Type	Primary Material	Material Flammability Rating	Voltage Rating	Shielding	Shell Finish	Contact Finish - Mating	Shell Material	Shell Size - Insert	Termination	Mounting Type	Features
CUI Devices MD-50SP	Polyamide (PA6) Nylon 6 Glass Filled	Push-Pull	Flange	80 C	5 °C	Phosphor Bronze	Keyed	Silver	Receptacle Female Sockets	Metal	UL94 V-0	12 V 100 VAC	Unshielded	Nickel	Silver	Brass	Mini DIN	Solder
CUI Devices MD-50J	Polyamide (PA6) Nylon 6	Push-Pull		105 ░C	-20 C	Brass	Keyed	Black	Receptacle Female Sockets	Metal	UL94 V-0	12 V 100 VAC	Unshielded	Black Nickel	Silver	Copper	Mini DIN	Crimp Pin Adapter Available Solder	Free Hanging (In-Line)	Ground Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder, Crimp Pin Adapter Available
