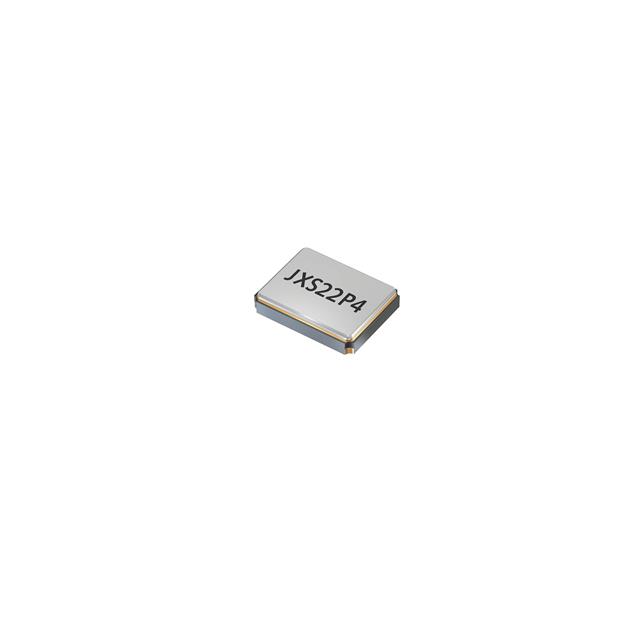

Q 27,0-JXS22P4-12-20/20-T1-FU-AEC-LF

Active

Jauch Quartz

CRYSTAL 27MHZ 12PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q 27,0-JXS22P4-12-20/20-T1-FU-AEC-LF

Active

Jauch Quartz

CRYSTAL 27MHZ 12PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q 27,0-JXS22P4-12-20/20-T1-FU-AEC-LF	JXS22P4 Series

ESR (Equivalent Series Resistance)	40 Ohms	40 Ohms
Frequency	27 MHz	24 - 48 MHz
Frequency Stability	20 ppm	20 ppm
Frequency Tolerance	20 ppm	20 ppm
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Load Capacitance	12 pF	8 - 12 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	0.098 "	0.098 "
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Type	MHz Crystal	MHz Crystal

JXS22P4 Series

CRYSTAL 27MHZ 12PF SMD

Part	Package / Case	Ratings	Mounting Type	ESR (Equivalent Series Resistance)	Frequency Tolerance	Frequency Stability	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Load Capacitance	Operating Mode
Jauch Quartz Q 27,0-JXS22P4-12-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	27 MHz	12 pF	Fundamental
Jauch Quartz Q 48,0-JXS22P4-12-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	48 MHz	12 pF	Fundamental
Jauch Quartz Q 26,0-JXS22P4-12-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	26 MHz	12 pF	Fundamental
Jauch Quartz Q 30,0-JXS22P4-12-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	30 MHz	12 pF	Fundamental
Jauch Quartz Q 25,0-JXS22P4-8-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	25 MHz	8 pF	Fundamental
Jauch Quartz Q 24,0-JXS22P4-12-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	24 MHz	12 pF	Fundamental
Jauch Quartz Q 26,0-JXS22P4-8-20/20-T1-FU-AEC-LF	4-SMD, No Lead	AEC-Q200	Surface Mount	40 Ohms	20 ppm	20 ppm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	0.6 mm	0.024 in	85 °C	-40 °C	26 MHz	8 pF	Fundamental

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.88
		10	$ 0.76
		50	$ 0.68
		100	$ 0.65
		500	$ 0.59
	Digi-Reel®	1	$ 0.88
		10	$ 0.76
		50	$ 0.68
		100	$ 0.65
		500	$ 0.59
	Tape & Reel (TR)	1000	$ 0.56
		2000	$ 0.54
		3000	$ 0.53
		5000	$ 0.51
		7000	$ 0.50
		10000	$ 0.49

Description

General part information

JXS22P4 Series

27 MHz ±20ppm Crystal 12pF 40 Ohms 4-SMD, No Lead
