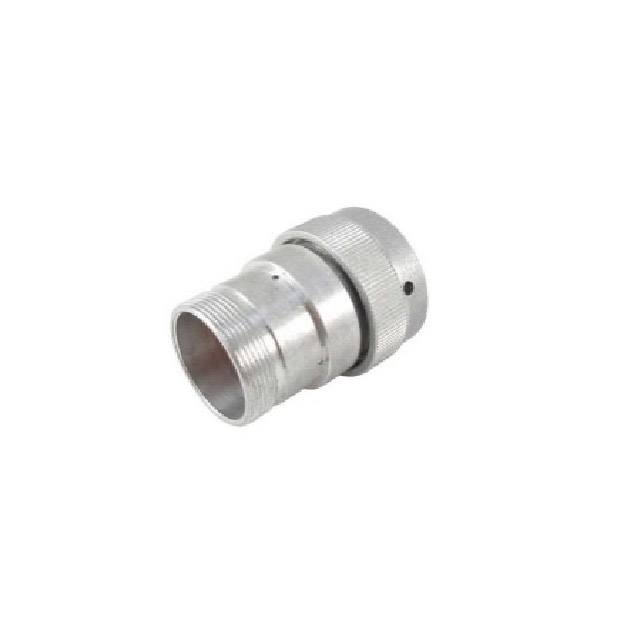

HD36-24-23PN-072
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSNG MALE 23POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD36-24-23PN-072
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSNG MALE 23POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD36-24-23PN-072 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 23 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 24 |
| Shell Size - Insert [Min] | 23 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.43 | |
| 10 | $ 30.15 | |||
| 25 | $ 28.84 | |||
| 50 | $ 27.91 | |||
| 120 | $ 26.98 | |||
| 360 | $ 25.50 | |||
Description
General part information
HD36-24 Series
23 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
