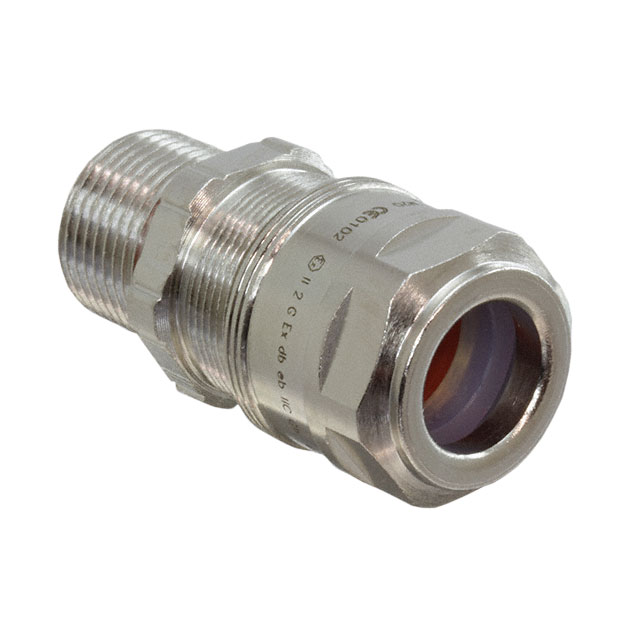

LEX220MSHTS

Active

Pflitsch

CABLE GLAND 8-14MM M20 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 8-14MM M20 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	LEX220MSHTS

Color	Silver
Includes	O-Ring
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	M20x1.5
Type	Cable Gland

Part	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Includes	Material	Thread Length	Thread Length
Pflitsch LEX220MSHTS	Silver	Cable Gland	130 °C	-60 °C	IP66/IP68	14 mm	0.551 "	8 mm	0.315 in	M20x1.5	O-Ring	Brass Nickel Plated	16 mm	0.63 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20x1.5 Silver
