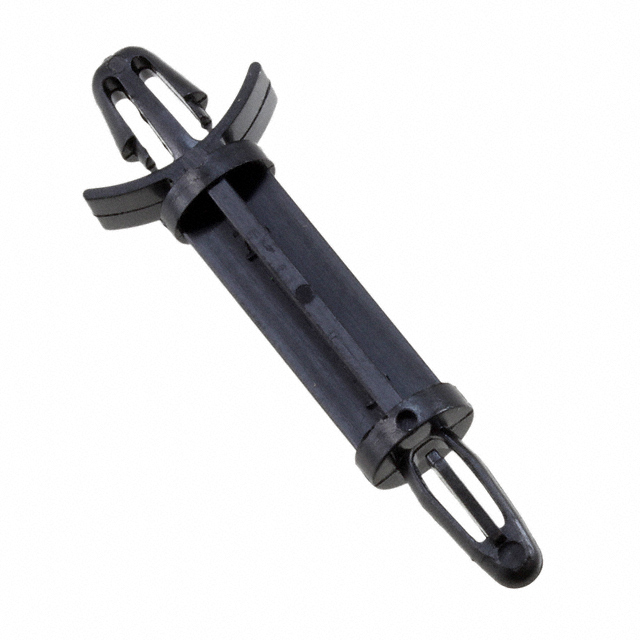

LCBS-14-HT
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 7/8"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-14-HT
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 7/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-14-HT |
|---|---|
| Between Board Height | 0.875 in |
| Between Board Height | 22.23 mm |
| Between Board Height | 0.875 in |
| Features | High Temperature, Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.602 in |
| Length - Overall [x] | 40.7 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.08 " |
| Mounting Panel Thickness [Max] | 2.03 mm |
| Mounting Panel Thickness [Min] | 1.4 mm |
| Mounting Panel Thickness [Min] | 0.055 " |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.45 | |
Description
General part information
LCBS-14 Series
Board Support Snap Lock / Snap Lock Nylon 0.875" (22.23mm) 7/8"
Documents
Technical documentation and resources
No documents available
