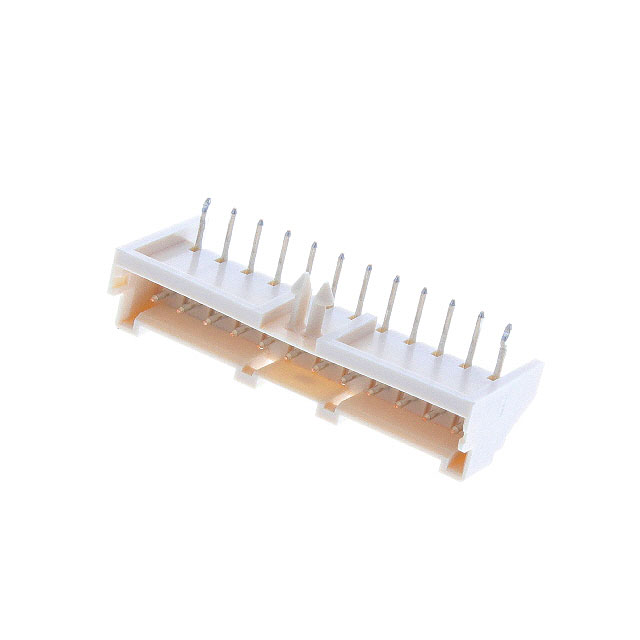

S12B-XASK-1
ActiveJST Sales America Inc.
CONN HEADER R/A 12POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
S12B-XASK-1
ActiveJST Sales America Inc.
CONN HEADER R/A 12POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S12B-XASK-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.299 in |
| Insulation Height | 7.6 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.05 | |
| 10 | $ 0.88 | |||
| 100 | $ 0.79 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.51 | |||
| 10000 | $ 0.48 | |||
Description
General part information
S12B-XAS Series
Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
