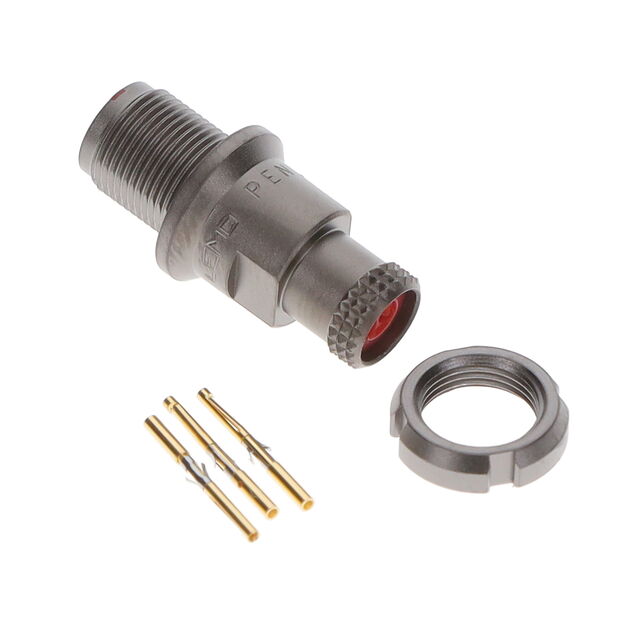

PEN.FF.303.XLM

Active

LEMO

CONN RCPT FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PEN.FF.303.XLM

Applications	Aerospace
Cable Opening [custom]	6.3 mm
Cable Opening [custom]	0.248 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	303
Shielding	Shielded
Termination	Crimp

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Insert Material	Connector Type	Ingress Protection	Shell Size - Insert	Color	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Termination	Shielding	Orientation	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature	Material Flammability Rating
LEMO PEN.FF.303.XLM	Gold	3 A	Bronze	Aluminum Alloy	200 °C	-15 °C	Metal	Push-Pull	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	IP67 - Dust Tight, Waterproof	303	Gray	Aerospace	59 Áin	1.5 Ám	Nickel	Crimp	Shielded	N	6.3 mm	0.248 in	Bulkhead - Front Side Nut	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Crimp
