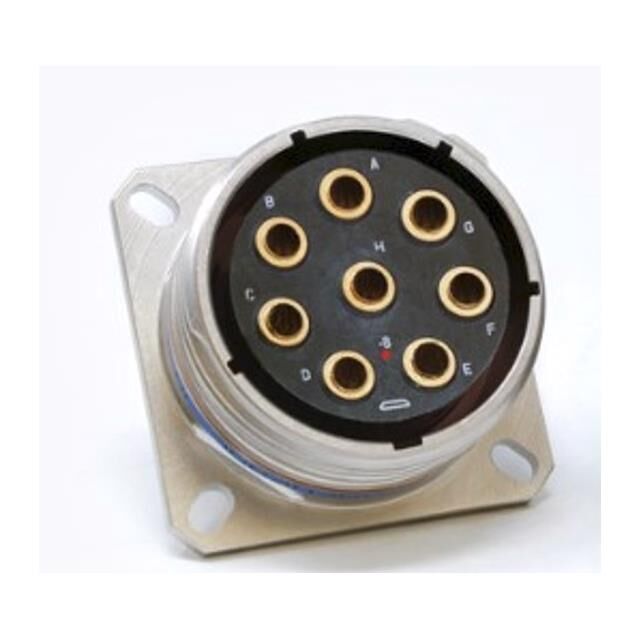

D38999/20LB98SNL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/20LB98SNL	D38999/20LB Series

	-	-
Applications	-	Aviation, Marine, Military
Connector Type	Receptacle Housing	Receptacle Housing, Receptacle, Male Pins
Contact Finish - Mating	-	Gold
Contact Type	Crimp	Crimp
Housing Color	Silver	Silver
Includes	1 pc - 1 Insert Shell	1 pc - 1 Insert Shell
Ingress Protection	Waterproof	Waterproof
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	2 - 6
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	N
Primary Material	Metal	Metal
Shell Size - Insert	-	11-2
Shell Size, MIL	B	B
Shielding	-	Unshielded
Termination	-	Crimp
Type	For Female Sockets	For Female Sockets

D38999 SER III RECEPTACLE

Part	Shell Size, MIL	Connector Type	Contact Type	Primary Material	Housing Color	Orientation	Insert Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions	Includes	Note	Mounting Feature	Type	Applications	Shielding	Shell Size - Insert	Termination	Contact Finish - Mating
Corsair D38999/20LB98SNL	B	Receptacle Housing	Crimp	Metal	Silver	N	Thermoplastic	UL94 V-0	-65 ░C	200 °C	Waterproof	6	1 pc - 1 Insert Shell	Contacts Not Included	Flange	For Female Sockets
Corsair D38999/20LB2PNL
Corsair D38999/20LB2HN	B	Male Pins, Receptacle				N						2			Flange		Aviation, Marine, Military	Unshielded	11-2	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle Housing Panel Mount
