2ATF3-F4-IO

Active

Altech Corporation

CONFIG SW BODY PUSHBUT NON-ILLUM

Search across all available documentation for this part.

Active

Altech Corporation

CONFIG SW BODY PUSHBUT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2ATF3-F4-IO	2ATF3 Series

(Select First, Then Apply Filters) Compatible Series	22 mm	22 mm
(Select First, Then Apply Filters) Compatible Series	Altech	Altech
Actuator Type	Pushbutton, Rectangular (Dual)	Pushbutton, Rectangular (Dual)
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	22.5 mm	22.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY PUSHBUT NON-ILLUM

Part	Panel Cutout Dimensions [diameter]	Requires	Illumination	Type	Actuator Type	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series
Altech Corporation 2ATF3-F4-IO	22.5 mm	Contact Block(s)	Non-Illuminated	Momentary	Pushbutton, Rectangular (Dual)	22 mm	Altech
Altech Corporation 2ATF3-F4	22.5 mm	Contact Block(s)	Non-Illuminated	Momentary	Pushbutton, Rectangular (Dual)	22 mm	Altech
Altech Corporation 2ATF3P4-IO	22.5 mm	Contact Block(s)	Non-Illuminated	Momentary	Pushbutton, Rectangular (Dual)	22 mm	Altech

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

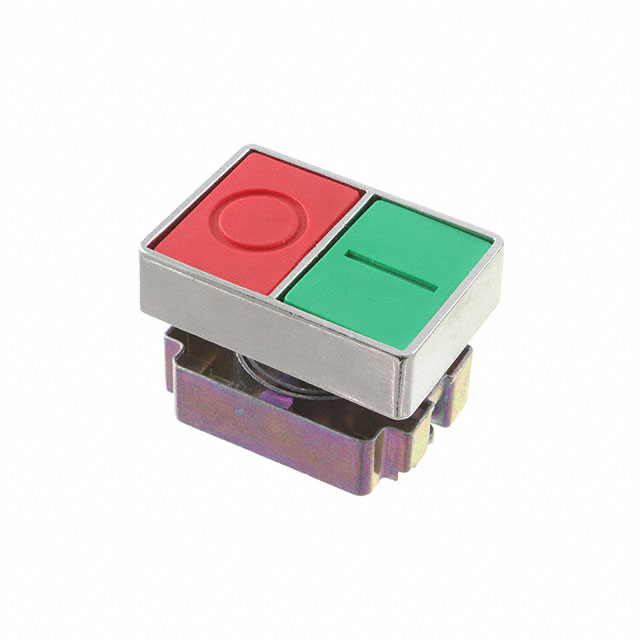

Configurable Switch Body Pushbutton, Rectangular (Dual) Non-Illuminated
