R180540007

Active

Radiall USA, Inc.

NEX10 F STR RECT P PIN C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 F STR RECT P PIN C50

Technical Specifications

Parameters and characteristics for this part

Specification	R180540007

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Dielectric Material	Center Contact Plating	Features	Shield Termination	Mounting Feature	Center Contact Material	Connector Type	Contact Termination	Impedance	Connector Style	Voltage Rating	Body Material
Radiall USA, Inc. R180540007	-55 °C	125 °C	1	20 GHz	Polytetrafluoroethylene (PTFE)	Silver	Extended Insulation	Solder	Flange	Beryllium Copper	Female Socket Jack	Solder	50 Ohms	NEX10	500 V	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

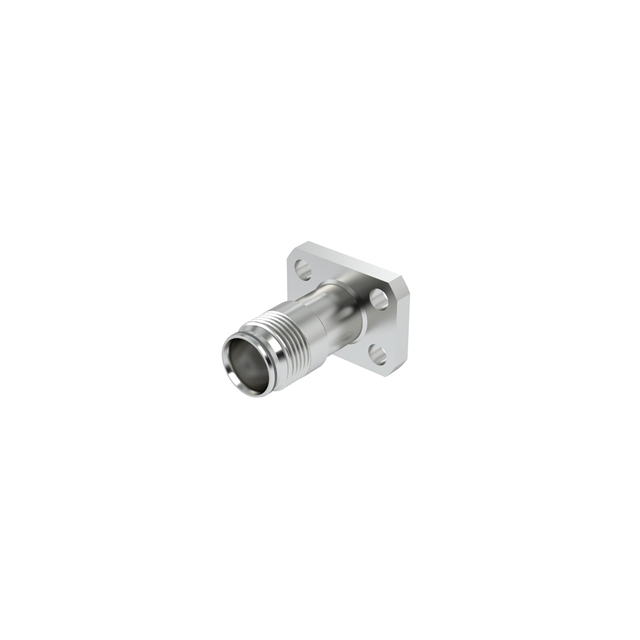

NEX10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
