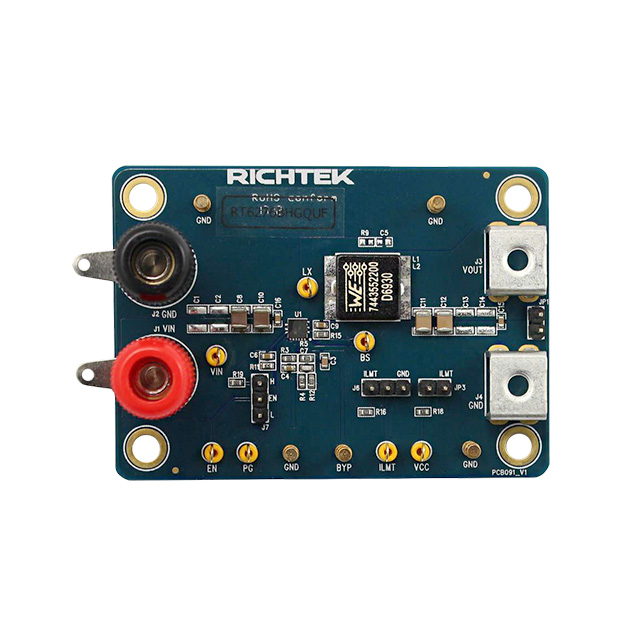

EVB_RT6276BHGQUF
ActiveRichtek USA Inc.
EVAL MODULE FOR RT6276BHGQUF
Deep-Dive with AI
Search across all available documentation for this part.
EVB_RT6276BHGQUF
ActiveRichtek USA Inc.
EVAL MODULE FOR RT6276BHGQUF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB_RT6276BHGQUF |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 6 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RT6276B |
| Voltage - Input [Max] | 23 V |
| Voltage - Input [Min] | 4.5 V |
| Voltage - Output [Max] | 5.1 V |
| Voltage - Output [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.90 | |
Description
General part information
RT6276 Series
RT6276B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
