M7VVK-1510R

Active

D-SUB CABLE MMU15K/MC16M/MMU15K

Search across all available documentation for this part.

Active

D-SUB CABLE MMU15K/MC16M/MMU15K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

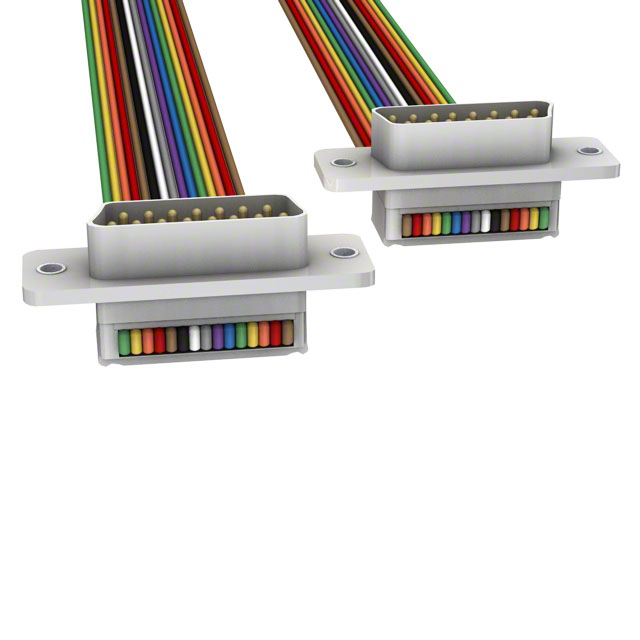

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Plug, Male Pins to Plug, Male Pins Unshielded

Technical documentation and resources

Part	Shielding	Number of Positions	1st Connector	Type	Usage	Length	Length	Contact Finish	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Color
3M M7VVK-1510J	Unshielded	15	Plug, Male Pins	DB15	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-3706J	Unshielded	37	Plug, Male Pins	DB37	Patch	6 ft	1.83 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-0906J	Unshielded	9	Plug, Male Pins	DB9	Patch	6 ft	1.83 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-0910R	Unshielded	9	Plug, Male Pins	DB9	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7VVK-0910J	Unshielded	9	Plug, Male Pins	DB9	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-5006J	Unshielded	50	Plug, Male Pins	DB50	Patch	6 ft	1.83 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-2510J	Unshielded		Plug, Male Pins	DB25	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-1506R	Unshielded	15	Plug, Male Pins	DB15	Patch	6 ft	1.83 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7VVK-3710J	Unshielded	37	Plug, Male Pins	DB37	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin
3M M7VVK-1510R	Unshielded	15	Plug, Male Pins	DB15	Patch	10 ft	3.05 m	Gold	Plug, Male Pins	0.76 Ám	30 Áin	Multiple, Ribbon
