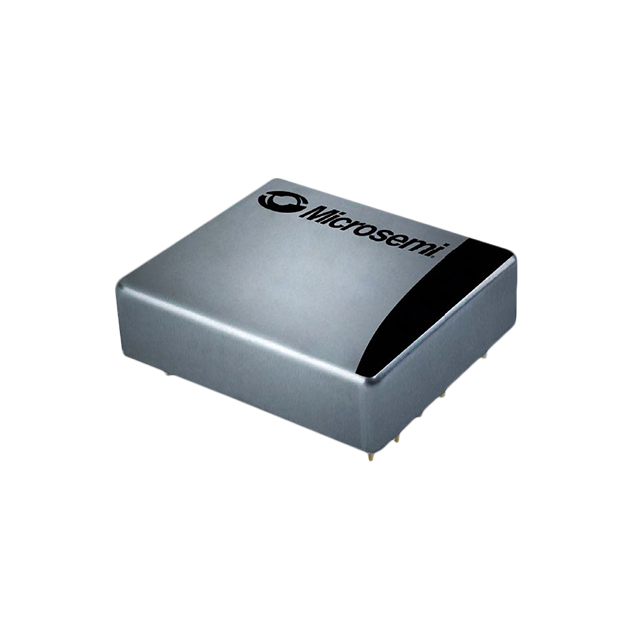

ActiveCRYSTAL CLOCK OSCILLATOR 10MHZ 12-PIN THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
090-02984-001
ActiveCRYSTAL CLOCK OSCILLATOR 10MHZ 12-PIN THRU-HOLE
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 090-02984-001 | CSAC-SA45S Series |
|---|---|---|
| Base Resonator | Crystal | Crystal |
| Frequency | 10 MHz | 10 - 16.384 MHz |
| Frequency Stability | 0.5 ppb | 0.5 ppb |
| Height - Seated (Max) [Max] [z] | 11.68 mm | 11.68 mm |
| Height - Seated (Max) [Max] [z] | 0.46 in | 0.46 in |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] [custom] | 158 °F | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Output | CMOS | CMOS |
| Package / Case | 12-DIP Module, 9 Leads | 12-DIP Module, 9 Leads |
| Size / Dimension [x] | 1.6 in | 1.6 in |
| Size / Dimension [x] | 40.64 mm | 40.64 mm |
| Size / Dimension [y] | 1.39 in | 1.39 in |
| Size / Dimension [y] | 35.31 mm | 35.31 mm |
| Type | Atomic | Atomic, Embedded Atomic Clocks |
| Voltage - Supply | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | N/A | 1 | $ 5377.76 | |
| 10 | $ 4596.38 | |||
| 50 | $ 3309.39 | |||
| 100 | $ 2987.65 | |||
| 250 | $ 2711.87 | |||
CSAC-SA45S Series
See Device Overview for Options
| Part | Frequency Stability | Base Resonator | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Output | Frequency | Voltage - Supply | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Mounting Type | Package / Case | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 090-02984-003 | 0.5 ppb | Crystal | 11.68 mm | 0.46 in | CMOS | 16.384 MHz | 3.3 V | 1.6 in | 1.39 in | 40.64 mm | 35.31 mm | -10 °C | 158 °F | Through Hole | 12-DIP Module, 9 Leads | Atomic |
Microchip Technology 090-02984-008 | Crystal | 11.68 mm | 0.46 in | CMOS | 3.3 V | 1.6 in | 1.39 in | 40.64 mm | 35.31 mm | Through Hole | 12-DIP Module, 9 Leads | Atomic | ||||
Microchip Technology 090-02984-001 | 0.5 ppb | Crystal | 11.68 mm | 0.46 in | CMOS | 10 MHz | 1.6 in | 1.39 in | 40.64 mm | 35.31 mm | -10 °C | 158 °F | Through Hole | 12-DIP Module, 9 Leads | Atomic | |
Microchip Technology 090-02984-007 | Through Hole | 12-DIP Module, 9 Leads | Embedded Atomic Clocks |
Description
General part information
CSAC-SA45S Series
Unmatched combination of breakthroughs - reduced Size, Weight and Power consumption (SWaP) - brings the accuracy and stability of atomic clocks to portable applications.
