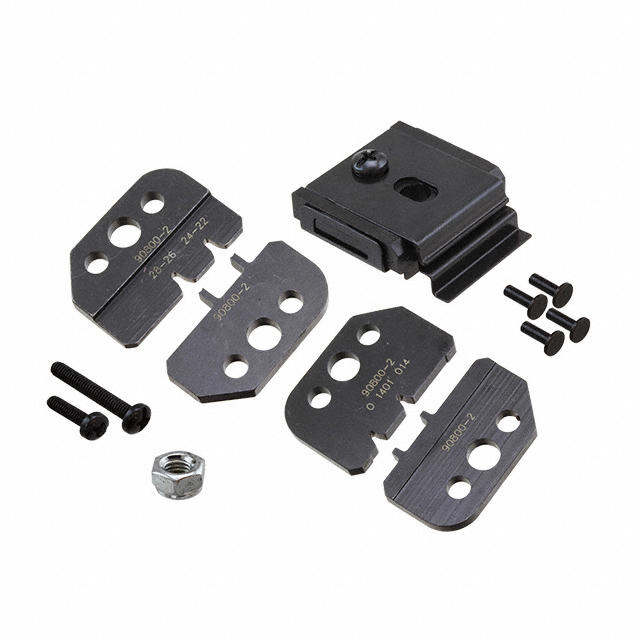

90800-2

Active

TE Application Tooling

DIE SET HI-DEN D-SUB CRIMP CONT

Search across all available documentation for this part.

Active

TE Application Tooling

DIE SET HI-DEN D-SUB CRIMP CONT

Technical Specifications

Parameters and characteristics for this part

Specification	90800-2

Compatible Tools	2031460-1, 9-1478240-0, 2031450-1, 679304-1, 1490076-2, 354940-1
For Use With/Related Products	D-Sub Contacts
For Use With/Related Products [Max]	28 AWG
For Use With/Related Products [Min]	22 AWG
Tool Type	Die Set

Part	Compatible Tools	For Use With/Related Products [Min]	For Use With/Related Products	For Use With/Related Products [Max]	Tool Type	Wire Entry Location	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Ratcheting
TE Application Tooling 90800-2	1490076-2 2031450-1 2031460-1 354940-1 679304-1 9-1478240-0	22 AWG	D-Sub Contacts	28 AWG	Die Set
TE Application Tooling 90800-1			D-Sub Contacts		Hand Crimper	Side Entry	28 AWG	22 AWG	Ratchet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Die Set For D-Sub Contacts, 22-28 AWG
