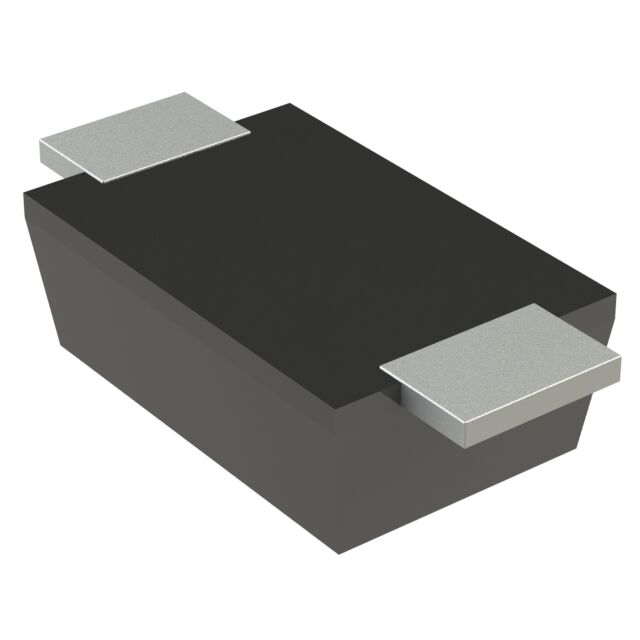

SMF22A RVG
ActiveTaiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC SOD123W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMF22A RVG
ActiveTaiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC SOD123W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMF22A RVG |
|---|---|
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-123W |
| Power - Peak Pulse | 200 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-123W |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Clamping (Max) @ Ipp | 35.5 V |
| Voltage - Reverse Standoff (Typ) | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Reel® | 1 | $ 0.45 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| Tape & Reel (TR) | 12000 | $ 0.11 | ||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
Description
General part information
SMF22 Series
35.5V Clamp 5.6A Ipp Tvs Diode Surface Mount SOD-123W
