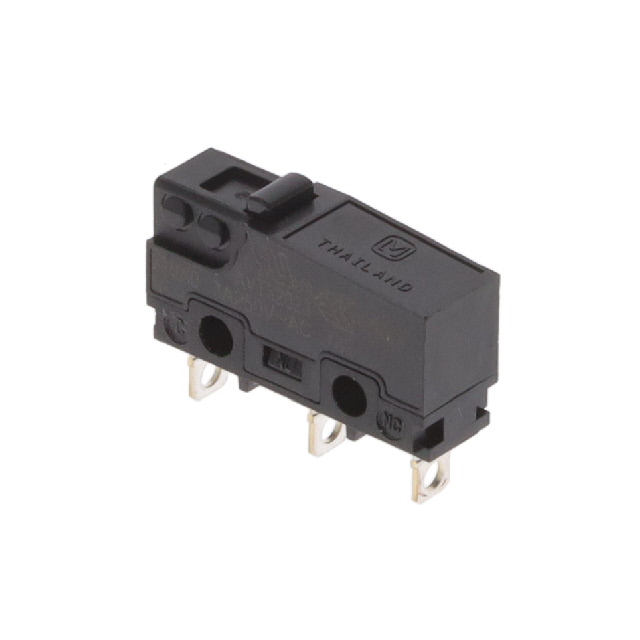

AVT32023

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Operating Position	Operating Position	Voltage Rating - AC	Voltage Rating - DC	Mechanical Life	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Differential Travel	Differential Travel	Switch Function	Actuator Type	Operating Force	Mounting Type	Circuit	Overtravel	Overtravel	Electrical Life	Current Rating (Amps)
Panasonic Electric Works AVT3204613	15 gf	8.4 mm	0.33 in	125 V	30 V	500000 Cycles	0.024 in	0.6 mm	-25 °C	85 °C	Solder Lug	0.1 mm	0.004 in	On-Mom	Round (Pin Plunger)	100 gf	Chassis Mount	SPDT	0.4 mm	0.015 "	50000 Cycles	100 mA
Panasonic Electric Works AVT32049	15 gf	8.4 mm	0.33 in	125 V	30 V	500000 Cycles	0.024 in	0.6 mm	-25 °C	85 °C	Solder Lug	0.1 mm	0.004 in	On-Mom	Round (Pin Plunger)	100 gf	Chassis Mount	SPDT	0.4 mm	0.015 "	50000 Cycles	3 A
Panasonic Electric Works AVT32023	7.546 gf	8.4 mm	0.33 in	125 V	30 V	500000 Cycles	0.024 in	0.6 mm	-25 °C	85 °C	Solder Lug	0.1 mm	0.004 in	On-Mom	Round (Pin Plunger)	50 gf	Chassis Mount	SPDT	0.4 mm	0.015 "	50000 Cycles	3 A
Panasonic Electric Works AVT32029	7.546 gf	8.4 mm	0.33 in	125 V	30 V	500000 Cycles	0.024 in	0.6 mm	-25 °C	85 °C	Solder Lug	0.1 mm	0.004 in	On-Mom	Round (Pin Plunger)	50 gf	Chassis Mount	SPDT	0.4 mm	0.015 "	50000 Cycles	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
