DS21448A1
ActiveAnalog Devices Inc./Maxim Integrated

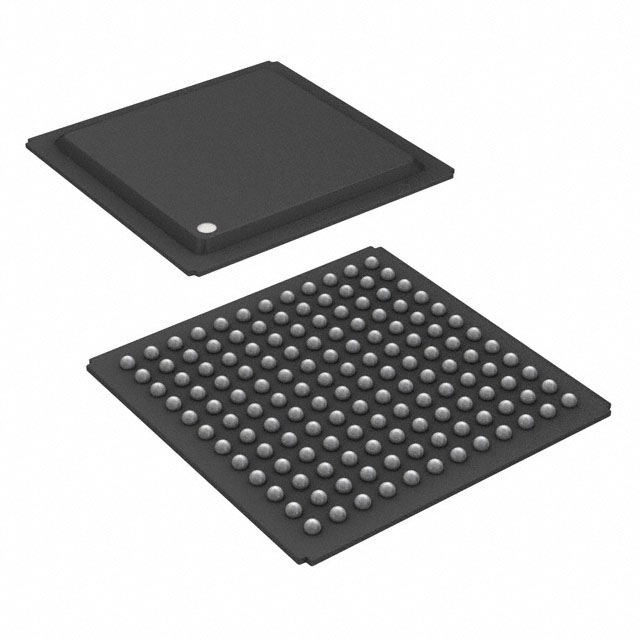

IC TELECOM INTERFACE 144BGA
Deep-Dive with AI
Search across all available documentation for this part.
DS21448A1
ActiveAnalog Devices Inc./Maxim Integrated
IC TELECOM INTERFACE 144BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS21448A1 | DS21448 Series |
|---|---|---|
| - | - | |
| Function | Line Interface Unit (LIU) | Line Interface Unit (LIU) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 4 | 4 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 144-BGA | 128-LQFP, 144-BGA |
| Supplier Device Package | 144-TEPBGA (17x17) | 128-LQFP, 14x20, 144-TEPBGA (17x17) |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 8 | $ 38.91 | |
DS21448 Series
LQFP-128(14X20) TELECOM INTERFACE ICS ROHS
| Part | Mounting Type | Number of Circuits | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Function |
|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS21448L+ | |||||||||
Analog Devices Inc./Maxim Integrated DS21448LN+ | Surface Mount | 4 | 3.465 V | 3.135 V | 128-LQFP, 14x20 | 128-LQFP | 85 °C | -40 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448 | Surface Mount | 4 | 3.465 V | 3.135 V | 144-TEPBGA (17x17) | 144-BGA | 70 °C | 0 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448L+ | Surface Mount | 4 | 3.465 V | 3.135 V | 128-LQFP, 14x20 | 128-LQFP | 70 °C | 0 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448A1 | Surface Mount | 4 | 3.465 V | 3.135 V | 144-TEPBGA (17x17) | 144-BGA | 70 °C | 0 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448N | Surface Mount | 4 | 3.465 V | 3.135 V | 144-TEPBGA (17x17) | 144-BGA | 85 °C | -40 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448L | Surface Mount | 4 | 3.465 V | 3.135 V | 128-LQFP, 14x20 | 128-LQFP | 70 °C | 0 °C | Line Interface Unit (LIU) |
Analog Devices Inc./Maxim Integrated DS21448G+ | Surface Mount | 4 | 3.465 V | 3.135 V | 144-TEPBGA (17x17) | 144-BGA | 70 °C | 0 °C | Line Interface Unit (LIU) |
Description
General part information
DS21448 Series
Telecom IC Line Interface Unit (LIU) 144-TEPBGA (17x17)
Documents
Technical documentation and resources
No documents available
