QII-0.006-00-54

Active

Bergquist

THERM PAD 19.05MMX12.7MM BLACK

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 19.05MMX12.7MM BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	QII-0.006-00-54

Color	Black
Material	Sil-Pad Rubber, Aluminum Coated
Outline [x]	19.05 mm
Outline [y]	12.7 mm
Shape	Rectangular
Storage/Refrigeration Temperature [Max]	21 °C
Storage/Refrigeration Temperature [Max]	69.8 °F
Storage/Refrigeration Temperature [Min]	46.4 °F
Storage/Refrigeration Temperature [Min]	8 °C
Thermal Conductivity	2.5 W/m-K
Thermal Resistivity	0.22 °C/W
Thickness	0.152 mm
Thickness	0.006 in
Usage	TO-220

THERM PAD 19.05MMX12.7MM BLACK

Part	Shape	Outline [x]	Outline [y]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thermal Conductivity	Usage	Material	Color	Thickness	Thickness	Thermal Resistivity
Bergquist QII-0.006-00-54	Rectangular	19.05 mm	12.7 mm	46.4 °F	21 °C	8 °C	69.8 °F	2.5 W/m-K	TO-220	Sil-Pad Rubber, Aluminum Coated	Black	0.152 mm	0.006 in	0.22 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

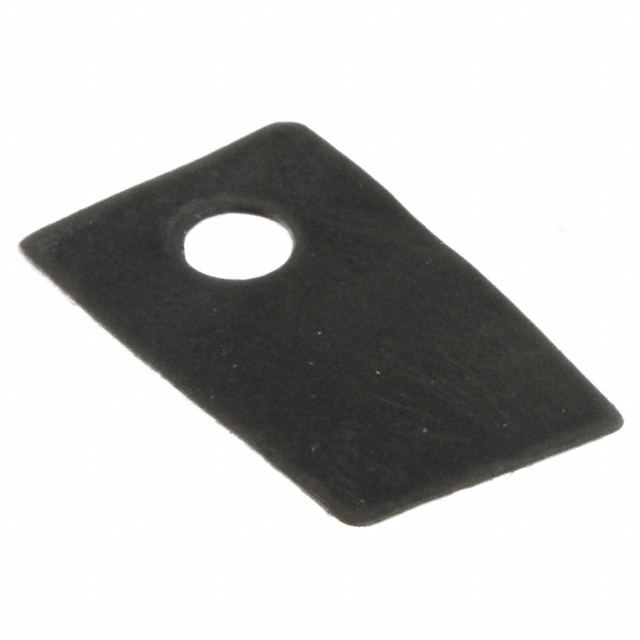

Thermal Pad Black 19.05mm x 12.70mm Rectangular
