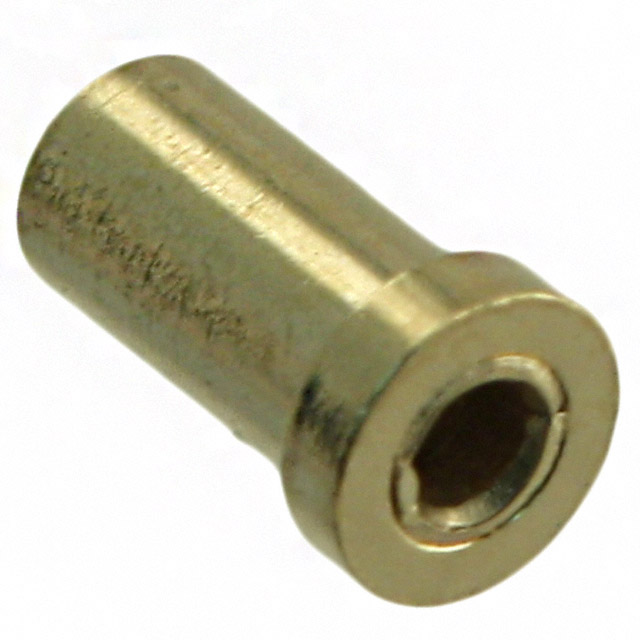

0669-0-15-15-30-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .015-.025 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0669-0-15-15-30-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .015-.025 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0669-0-15-15-30-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Length - Overall [x] | 3.18 mm |
| Length - Overall [x] | 0.125 in |
| Mounting Hole Diameter [diameter] | 0.06 in |
| Mounting Hole Diameter [diameter] | 1.52 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 2.54 mm |
| Socket Depth | 0.1 " |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
Description
General part information
0669-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
