BHR-34-VUA

Active

Adam Tech

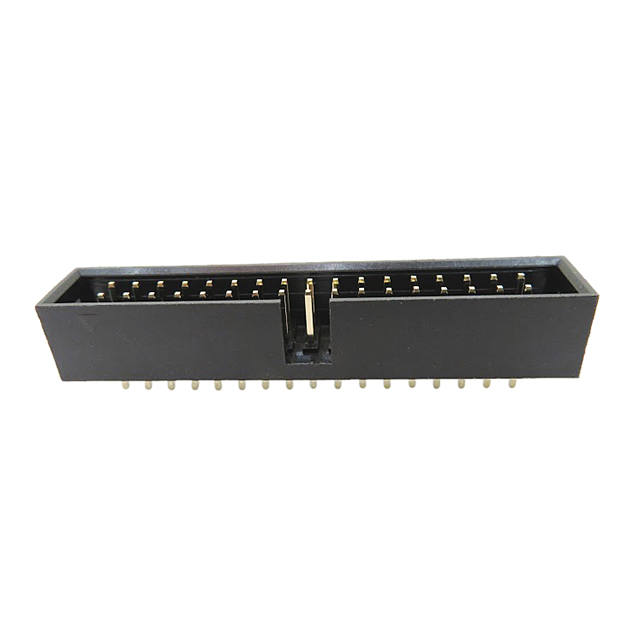

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

BHR-34-VUA

Active

Adam Tech

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-34-VUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.346 in
Insulation Height [z]	8.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

BHR-34 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Post	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Number of Rows	Style	Contact Material	Fastening Type	Termination	Insulation Color	Shrouding	Current Rating (Amps)	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]
Adam Tech BHR-34-VUA-ML	-40 °C	105 ░C	Square	Gold	0.13 in	3.3 mm	Male Pin	Gold	Flash	250 VAC	All	0.1 in	2.54 mm	Header	0.358 in	9.1 mm	UL94 V-0	Through Hole	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT) Glass Filled
Adam Tech BHR-34-VSG-SMT	-40 °C	105 ░C	Square	Tin			Male Pin	Gold		250 VAC	All	0.1 in	2.54 mm	Header			UL94 V-0	Surface Mount	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Thermoplastic	10.49 mm	0.413 in
Adam Tech BHR-34-HUA-ML	-40 °C	105 ░C	Square	Gold		3.2 mm	Male Pin	Gold	Flash	350 VAC	All	0.1 in	2.54 mm	Header	0.354 in	9 mm	UL94 V-0	Through Hole Right Angle	Flash	2	Board to Board Cable	Brass	Latch Lock/Eject Hooks Long	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT) Glass Filled			0.126 in
Adam Tech BHR-34-VUA	-55 °C	105 ░C	Square	Gold	0.13 in	3.3 mm	Male Pin	Gold	Flash	250 VAC	All	0.1 in	2.54 mm	Header			UL94 V-0	Through Hole	Flash	2	Board to Board Cable	Brass	Push-Pull	Solder	Black	Shrouded - 4 Wall	3 A	Keying Slot	2.54 mm	0.1 in	34	Polybutylene Terephthalate (PBT)	8.8 mm	0.346 in
