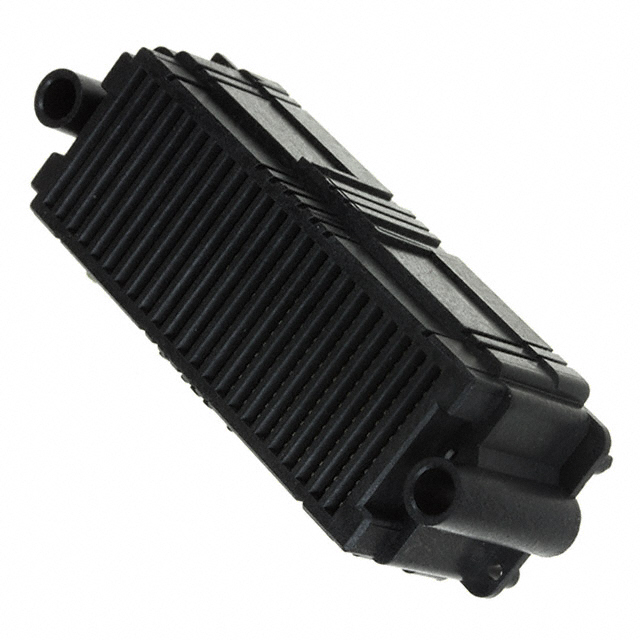

HDAF-23-18.0-S-13-1

Active

Samtec Inc.

CONN HD ARRAY RCPT 299P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 299P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. HDAF-23-08.0-S-13-1	High Density Array Female	1.2 mm	0.047 in	Gold	Board Guide	0.76 Ám	30 Áin	Surface Mount	0.414 in	10.51 mm	13	20 mm 25 mm	299
Samtec Inc. HDAF-23-08.0-S-13-2-P	High Density Array Female	1.2 mm	0.047 in	Gold	Board Guide Pick and Place	0.76 Ám	30 Áin	Surface Mount	0.414 in	10.51 mm	13	20 mm 25 mm	299
Samtec Inc. HDAF-23-18.0-S-13-1	High Density Array Female	1.2 mm	0.047 in	Gold	Board Guide	0.76 Ám	30 Áin	Surface Mount			13	30 mm 35 mm	299	20.51 mm	0.807 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 69.23

General part information

299 Position Connector High Density Array, Female Surface Mount Gold
