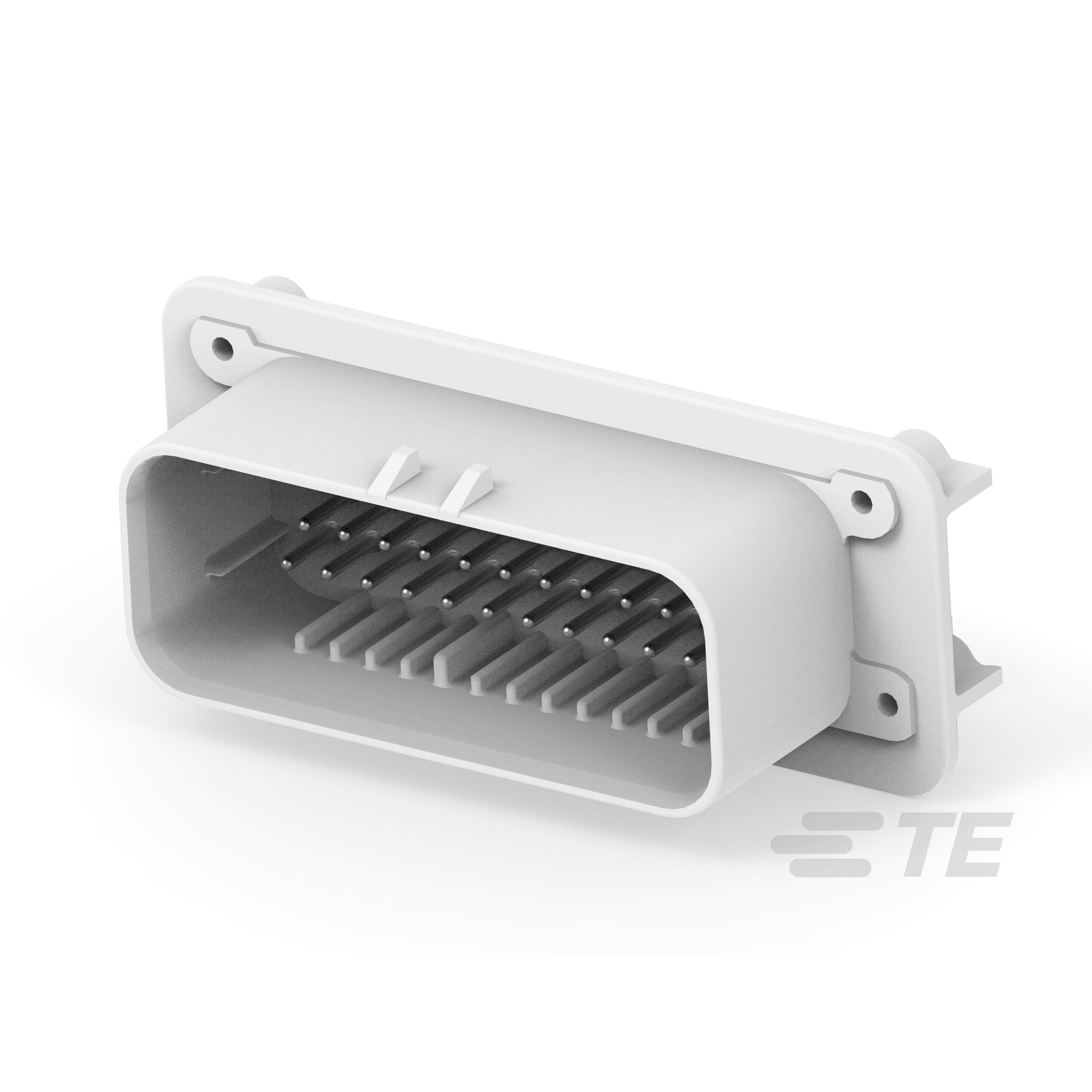

776180-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 35POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776180-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 35POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776180-2 | 776180 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealable, Board Guide | Sealable, Board Guide |
| Insulation Color | Natural | Black, Natural, Blue, Gray |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 35 | 35 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776180 Series
CONN HEADER R/A 35POS 4MM
| Part | Termination | Style | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Rows | Contact Material | Shrouding | Voltage Rating | Applications | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Number of Positions Loaded | Contact Type | Fastening Type | Connector Type | Features | Contact Shape | Insulation Color | Insulation Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776180-1 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Black | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 105 ░C | |
TE Connectivity AMP Connectors 1-776180-2 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Natural | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 125 °C | Gold-Palladium |
TE Connectivity AMP Connectors 776180-5 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Blue | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 105 ░C | |
TE Connectivity AMP Connectors 776180-2 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Natural | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 105 ░C | |
TE Connectivity AMP Connectors 776180-4 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Gray | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 105 ░C | |
TE Connectivity AMP Connectors 1-776180-5 | Solder | Board to Cable/Wire | 35 | 0.157 in | 4 mm | 3 | Brass | Shrouded - 4 Wall | 250 VAC | Automotive, Industrial | 0.157 " | 4 mm | Varies by Wire Gauge | All | Male Pin | Locking Ramp | Header | Board Guide, Sealable | Circular | Blue | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole | -40 °C | 125 °C | Gold-Palladium |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.26 | |
| 32 | $ 16.45 | |||
| 96 | $ 15.65 | |||
| 448 | $ 14.03 | |||
Description
General part information
776180 Series
Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
