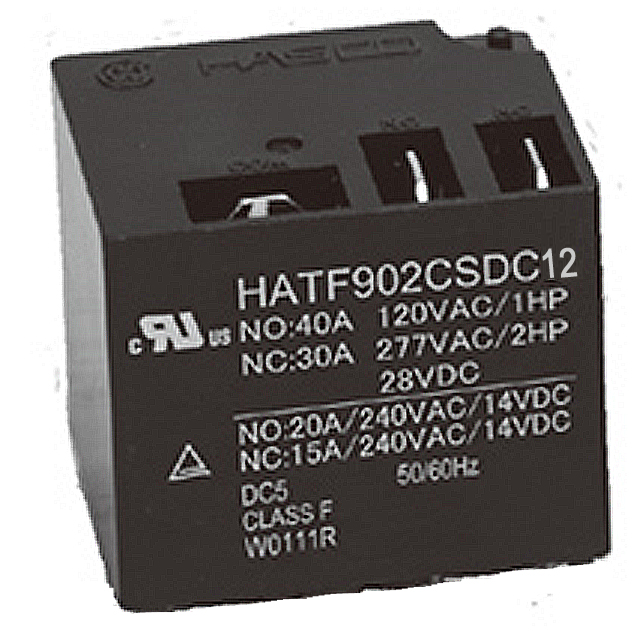

HAT902CSDC12

Active

Hasco Relays

RELAY SPDT 30A 12V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPDT 30A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY SPDT 30A 12V

Part	Coil Insulation	Coil Voltage	Operate Time	Must Release Voltage	Release Time	Coil Type	Contact Form	Coil Current	Contact Material	Contact Rating (Current)	Mounting Type	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Termination Style	Termination Style
Hasco Relays HAT902CSDC12	Class B	12 VDC	15 ms	1.2 VDC	10 ms	Non Latching	SPDT (1 Form C)	77.4 mA	Silver Alloy	30 A	Through Hole	277 VAC	85 °C	-40 °C	9 VDC	PC Pin, Quick Connect	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 2.05

General part information

Relay SPDT (1 Form C) 12VDC Coil Through Hole
