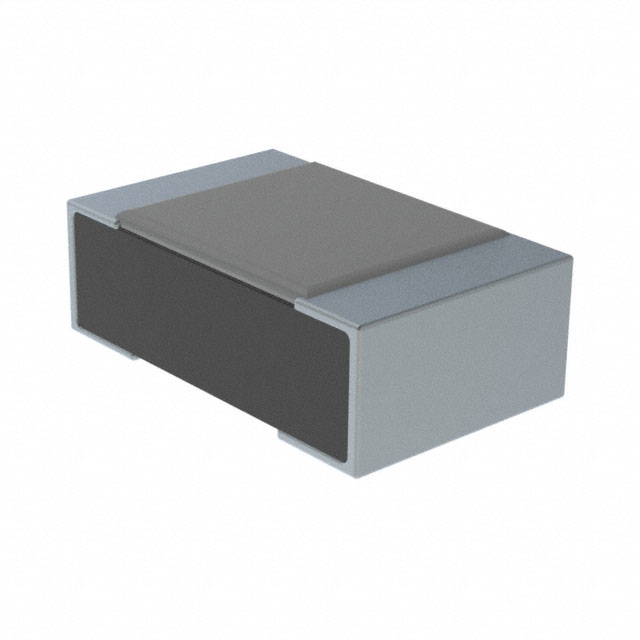

UR732ATTD47L0F
ActiveKOA Speer Electronics, Inc.
RES 47M OHM 1% 1/3W 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UR732ATTD47L0F
ActiveKOA Speer Electronics, Inc.
RES 47M OHM 1% 1/3W 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UR732ATTD47L0F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.333 W |
| Power (Watts) | 0.3333333333333333 W |
| Resistance | 47 mOhms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 5000 | $ 0.13 | ||
Description
General part information
UR732A Series
47 mOhms ±1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Current Sense Thick Film
