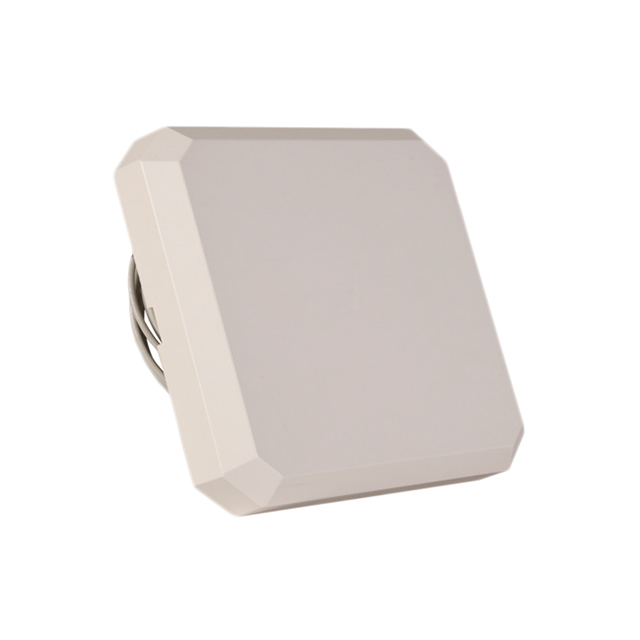

PDQ24499-91NF
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ PANEL CAB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDQ24499-91NF
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ PANEL CAB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQ24499-91NF |
|---|---|
| Antenna Type | Panel |
| Applications | Wi-Fi |
| Features | 910 mm |
| Features | Cable |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.95 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 9.4 dBi, 8.6 dBi |
| Height (Max) [Max] | 1.614 in |
| Height (Max) [Max] | 41 mm |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female (4) |
| VSWR | 1.8, 1.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PDQ24499 Series
RF ANTENNA Wi-Fi Panel N Type Female (4) Bracket Mount
