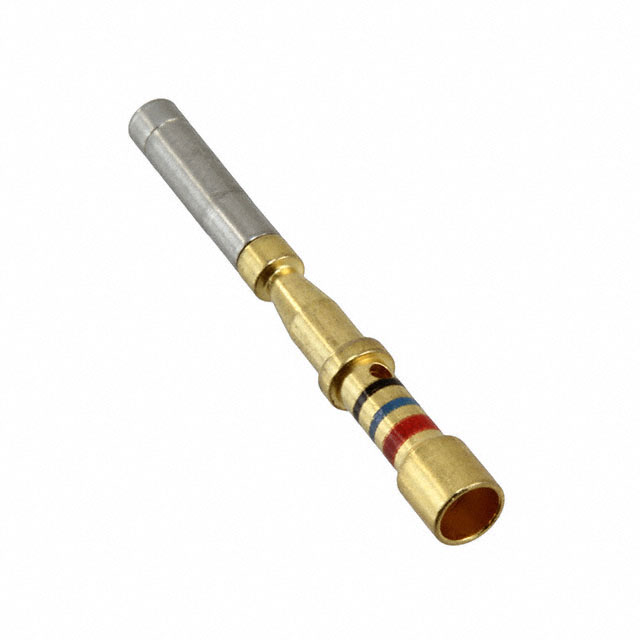

M39029/32-260
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 20-24AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/32-260
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 20-24AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/32-260 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Features | Insulation Support |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm² [Max] | 0.6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.13 | |
| 10 | $ 1.85 | |||
| 100 | $ 1.65 | |||
| 1000 | $ 1.18 | |||
| 5000 | $ 1.05 | |||
Description
General part information
M39029/32 Series
Socket Contact 20-24 AWG Size 20 Crimp Gold
