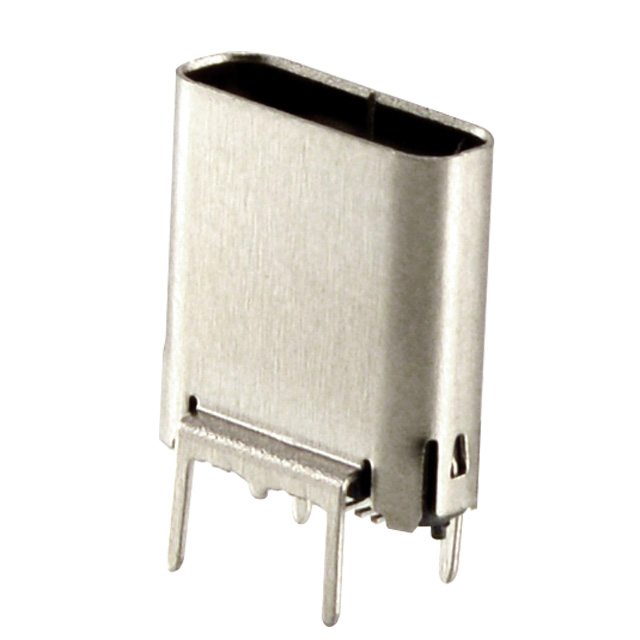

KUSBVX-SMT3-CS-B30TRC

Active

Kycon, Inc.

CONN RCPT USB3.1 TYPEC 4POS DUAL

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN RCPT USB3.1 TYPEC 4POS DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	KUSBVX-SMT3-CS-B30TRC

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Solder Retention, Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical
Mounting Type	Surface Mount, Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	30 V

CONN RCPT USB3.1 TYPEC 4POS DUAL

Part	Number of Contacts	Material Flammability Rating	Connector Type	Shell/Shielding Material	Features	Current Rating (Amps)	Shielding	Termination	Insulation Color	Specifications	Mating Cycles	Mounting Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish	Mounting Feature	Voltage - Rated
Kycon, Inc. KUSBVX-SMT3-CS-B30TRC	24	UL94 V-0	USB-C (USB TYPE-C)	Stainless, Steel	Board Guide, Solder Retention	5 A	Shielded	Solder	Black	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	10000	Surface Mount, Through Hole	1	85 °C	-55 °C	Receptacle	Gold	Vertical	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
